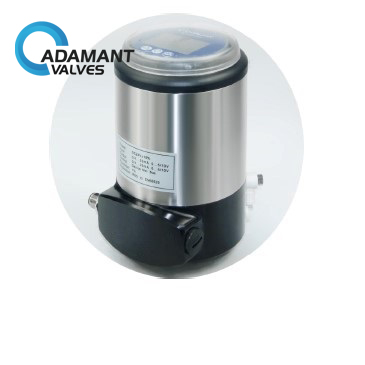

AV-TOP Valve Positioner IL-TOP 1831/1832

Availability : In stock

Material of Sensor: Stainless steel, PPS, PC

Ambient temperature: 0~55℃

0/4 … 20mA to 0 … 5 / 10V signal input (standard)

0/4 … 20mA to 0 … 5 / 10V position feedback output (option)

Power: DC.24V

Air pressure: 5.0-7.0Bar

Protect class: IP68

Valve Positioner IL-TOP 1831/1832 Description

Valve Positioner IL-TOP 1831/1832 is mainly used in the fluid process control system. It achieves valve flow adjustment control. The controller can be fitted to a variety of pneumatic valves, for example, diaphragm valve, divert seat valve, angle seat valve, butterfly valve, ball valve, and other valves.

Valve Positioner IL-TOP 1831/1832 Technical Parameters

Technical Parameters
Material	PPS, Stainless Steel, PC
Power Supply	24 VDC +/- 10%
Setpoint Setting	0/4 … 20mA to 0 … 5 / 10V
Output Resistance	0/4 … 20mA: 180Ω 0 … 5 / 10V: 19 kΩ
Control medium	Neutral gas, air DIN ISO 8573-1
Dust concentration	Class 5 (<40pm particle size)
Particle density	Class 5 (< 10mg/m3)
Pressure condensation point	Cass 3 (<-20°C)
Oil concentration	Class 5 (<25mg/m3)
Ambient temperature	0 to 55℃

Valve Positioner IL-TOP 1831/1832 Applications

Valve Positioner IL-TOP 1831/1832 is used in bio-pharmaceuticals, water treatment, food processing, beer and beverage, fine chemicals, and other fluid control.
