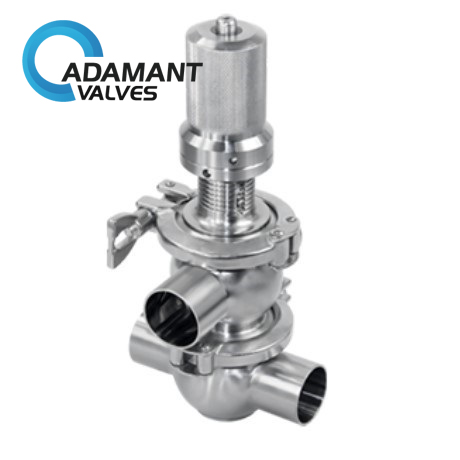

AV-9FW Sanitary Four-way Safety Valve

Sanitary Four-way Safety Valve Description

Sanitary Four-way Safety Valve is used to protect the flow pressure safety through pipes, pumps, accessories, pools, etc. With the sanitary and safe design, it avoids operation danger and equipment failure caused by excessive pressure.

Sanitary Four-way Safety Valve can be operated with handles. When the pressure in the pipes exceeds the specific pressure, the valve will open automatically to make the liquid pass over, so that the pressure in the pipeline is reduced.

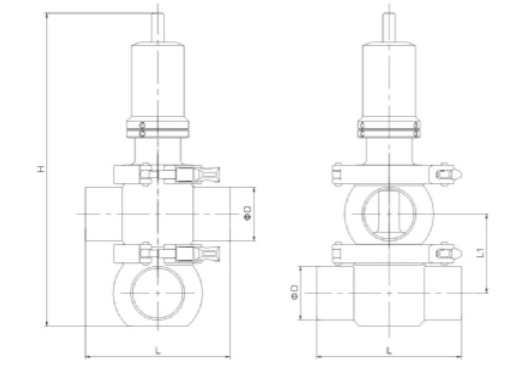

Sanitary Four-way Safety Valve Specifications

Size	D	H	L	L1
1”	25.4	253	100	67
1.25”	31.8	254	110	67
1.5”	38.1	255	120	67
2”	50.8	303	140	76
2.5”	63.5	343	160	88
3”	76.2	398	198	105

Sanitary Four-way Safety Valve Applications

Sanitary Four-way Safety Valve is used for the protection of equipment in the dairy, food, beverage, pharmaceutical, and fine chemical industries.
