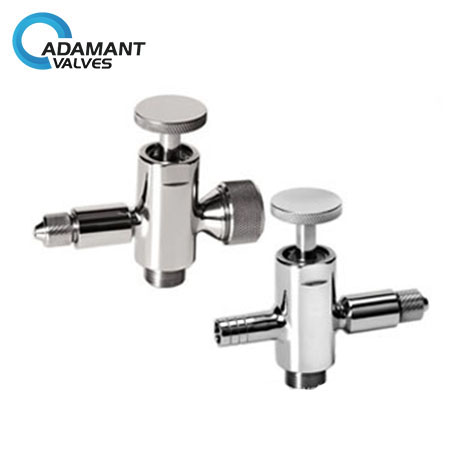

AV-7G Sanitary Gauges
Availability :
In stock
Materials: AISI-316L
Size: 1/4”-3/4”
Seals: PTFE
Technical Specification
- End connection: threaded, clamp, welded as customers require.
- Size available: 1/4″, 3/8″, 1/2″, 3/4″
- Max. working pressure: 147psi (10bar)
- Min. working pressure: Applicable under vacuum
- Working temperature: 14 ~ 248°F (-10 ~ 120°C)
Sanitary Gauges Application
AV-7G series sanitary gauge is mainly applied to tank equipment to observe the conditions of inside liquids. It can be also used for sampling.
Sanitary Gauges Materials
Materials: AISI-316L
Size: 1/4”-3/4”
Seals: PTFE
Sanitary Gauges Technical Specification
- End connection: threaded, clamp, welded as customers require.
- Size available: 1/4″, 3/8″, 1/2″, 3/4″
- Max. working pressure: 147psi (10bar)
- Min. working pressure: Applicable under vacuum
- Working temperature: 14 ~ 248°F (-10 ~ 120°C)
/wp-content/uploads/2016/01/AV-7-Sanitary-Sampling-Valves.pdf |
