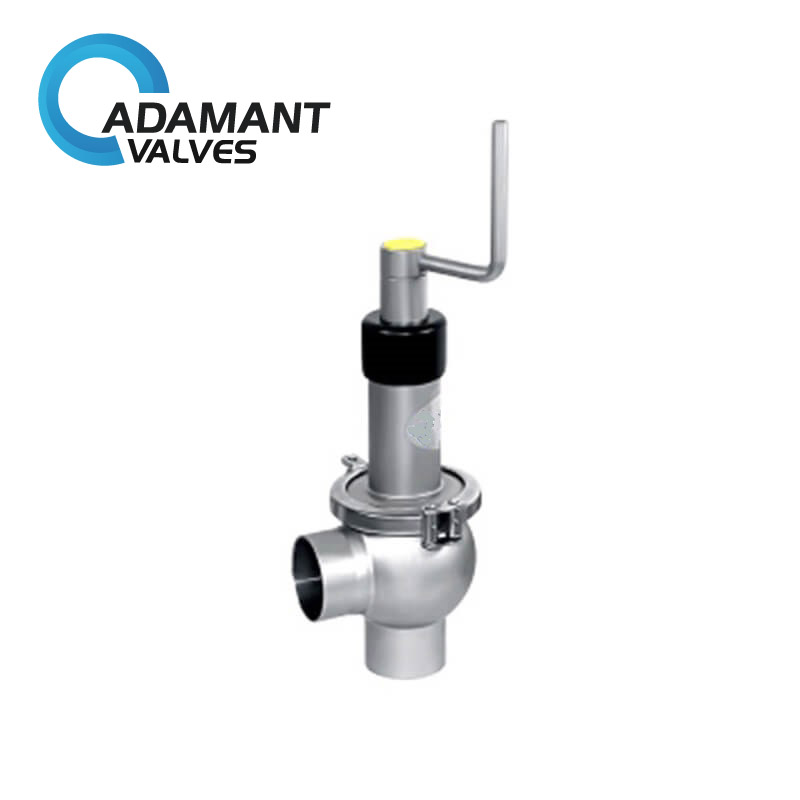

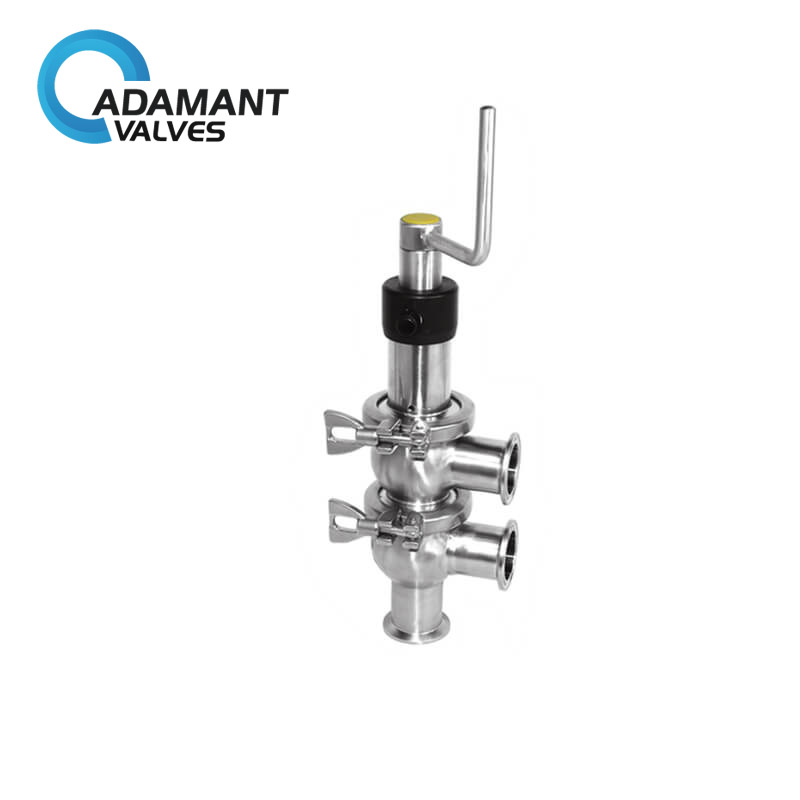

AV-6 Sanitary Divert Seat Valves with Butt-weld Ends, Manual Type

Sanitary Divert Seat Valves Application

AV-6 series regulating valve is widely used in the sanitary fluid pipeline system to regulate pressure and flow.

Sanitary Divert Seat Valves Materials

Materials: AISI-316L/ AISI 304
Size: 1”-2”
Plug and seal: EPDM, or others upon request.

Type: Manual, Pneumatic, Electric

Sanitary Divert Seat Valves Working Principle

This type of regulating valve is operated by a handwheel. While the handwheel is adjusted clockwise, pressure and flow will decrease gradually until the valve closes; While the handwheel is adjusted anticlockwise, pressure and flow will increase gradually until the valve is fully open; (Gradually adjust the conical plug, and then lock the plug at the desired position with bolts.)

Sanitary Divert Seat Valves Standard Design

• Valve body and valve stem with stopper are made of stainless steel AISI 304 or acid-resistant stainless steel AISI 316L.
• Valve body OD sand polished, the valve stem is strengthened by enhanced chromium plating.
• Gasket and lip seal use EPDM material with high thermo-stability.

Seal Features:
Sterile, no dead
Elastic compression, friction-free, longevity by approximately 3.000.000 umes Vacuum and high tempera1ure 150’1:: not falling the spool

Design and features:

Compact and robust design.
Size: DN25/1′ to DN 100/4′
Normally closed (NC) in the standard version.
The valve can be changed ( 180° )to normally open (NO) by simply reversing the position of the pneumatic actuator
Hygienic design according to 3A standard
360° adjustable body
Easy assembly/disassembly of internal parts by loosening a clamp fastener
Standard weld connection (mm or inch)

Technical specifications

+ Size: DN25-DN100/1′-4″
+ Working temperature: -10’C to 120°C (EPDM) 14° F to 248° F, 140’C/284° F (SIP, max. 30min)
+ Max. Working pressure: 10bar 145PSI
+ Compressed air pressure: 5-7bar
+ Air connecitons: G1/8′ (BSP)

Options

+ Gaskets: FPM (viton (R)) in compliance with FDA 177.2600
Connections: DIN, SMS, RJT,IDF
Double-acting pneumatic actuator
External position sensor
Steam barrier (if shaft sterilisation is required)
Body jacket insulation
Valve position regulator
Double stop actuator
Diaphragm type valve cavity
C-TOP control unit
Surface finish: Ra.;;0.5 µ m
Manual operated.

Valve position can be adjusted divert seat
