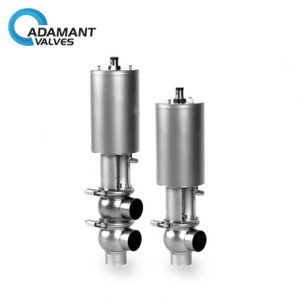

AV-5SS Sanitary Shutoff And Divert Valves

Availability : In stock

Materials
Materials: AISI-316L
Size available: DN25 – DN100/ 1″-4″
Seat materials: EPDM (Std), other seats available upon request.
Elastomers: FPM (Std), EPDM (Opt) — all seals complying with FDA21CFR177.2600

Technical Specification

  • Size available: DN25-1″ to DN100-4″
  • Max. working pressure: 147psi (10bar)
  • Control air pressure: 70 ~ 116bar (5 ~ 8bar)
  • Working temperature range: EPDM: 14 ~ 248°F (-10 ~ 120°C)
  • Sterilization temperature: 302°F (150°C, Max. 20 min)
  • Pneumatic connection: G1/8″ (BSP)
  • End connections: butt-welded, sanitary clamp, threaded, flange, DIN, SMS, RJT, IDF or others upon request.
  • Finish: <32Ra (<0.8µm); Other finishes available upon request
SKU: AV-5SS Category:

Sanitary Shutoff And Divert Valves Application

When stopping or diverting flow in a process system, the AV-5SS series single seat valve line provides both a flexible and reliable solution. These valves are pneumatically or manually operated and offered in a wide variety of body configurations.

Sanitary Shutoff And Divert Valves Materials

Materials: AISI-316L
Size available: DN25 – DN100/ 1″-4″
Seat materials: EPDM (Std), other seats available upon request.
Elastomers: FPM (Std), EPDM (Opt) — all seals complying with FDA21CFR177.2600

Sanitary Shutoff And Divert Valves Video



Sanitary Shutoff And Divert Valves Standard Design

The self draining machined and polished valve bodies are made from acid-resistant stainless steel. Their round shape offers minimum resistance to flow. The valve body and pneumatic actuator are connected by clamps enabling easy and quick assembly and disassembly. The design ensures easy cleaning of the valve plug. The configuration of the valve can be changed from normally closed to normally open or vice-versa by just inverting the actuator. All seats and seals are made from FDA approved materials.

Sanitary Shutoff And Divert Valves Actuators

Normally Closed (NC) – Air to open and spring to close;
Normally Open (NO) – Air to close and spring to open;
Air to Air (AA) – Air to open air to close;
Manual version – Opened or closed manually by rotating the handle.

Sanitary Shutoff And Divert Valves Technical Specification

  • Size available: DN25-1″ to DN100-4″
  • Max. working pressure: 147psi (10bar)
  • Control air pressure: 70 ~ 116bar (5 ~ 8bar)
  • Working temperature range: EPDM: 14 ~ 248°F (-10 ~ 120°C)
  • Sterilization temperature: 302°F (150°C, Max. 20 min)
  • Pneumatic connection: G1/8″ (BSP)
  • End connections: butt-welded, sanitary clamp, threaded, flange, DIN, SMS, RJT, IDF, or others upon request.
  • Finish: <32Ra (<0.8µm); Other finishes available upon request
Technical Parameters
Steel material
Product wetted steel parts AISI 316L
Provided with the material inspection report
Other steel parts AISI 304
Seal material
Standard EPDM
All seal materials comply with FDA 21CFR117.2600
Options FPM, Silicone, NBR
Pressure
Working pressure 0 ~ 147psi (0 ~ 10bar)
Supply pressure for air actuator 5 ~ 8bar (70 ~ 116psi)
Temperature Working temperature EPDM: 14 ~ 248°F (-10 ~ 120°C)
Surface treatment
Inside surface treatment Ra 16 ~ 32µin (0.4 ~ 0.8µm)
Outside surface treatment Sandblast or mirror
Connection End connections: butt-welded, sanitary clamp, threaded, flange, DIN, SMS, RJT, IDF, or others upon request.
Pneumatic head Normally Closed (NC) – Air to open and spring to close;
Normally Open (NO) – Air to close and spring to open;
Air to Air (AA) – Air to open, air to close.

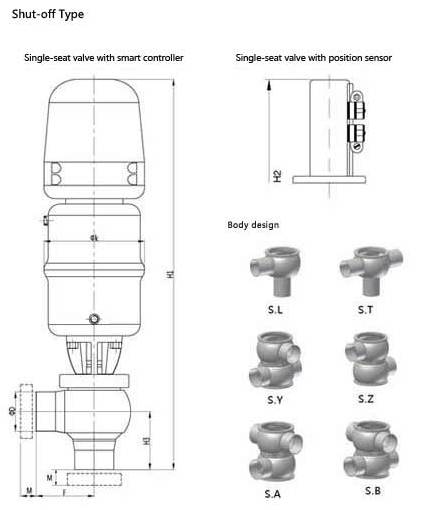

Variety of Body Configurations

av-5ss1

av-5ss2

Dimensions (mm)

DN

D

K

F

H1

H2

H3

M (Clamp)

25
32
40
50
65
80
100

29×1.5
35×1.5
41×1.5
53×1.5
70×2.0
85×2.0
104×2.0

91
91
91
130
130
195
195

55
65
65
75
90
105
120

402
463.5
463.5
506.7
524.4
629.2
653.7

344
405.5
405.5
448.7
566.2
571.2
595.7

55
62.5
62.5
75
90
105
120

21.5
21.5
21.5
21.5
28
28
28

Inch



1.0″
1.5″
2.0″
2.5″
3.0″
4.0″

25.4×1.65
38.1×1.65
50.8×1.65
63.5×1.65
76.2×1.65
101.6×2.11

91
91
130
130
195
195

55
65
75
85
95
120

402
463.5
506.7
522.5
616.2
653.7

344
405.5
448.7
564.2
558.2
595.7

55
62.5
75
85
95
120

12.7
12.7
12.7
12.7
12.7
15.8
