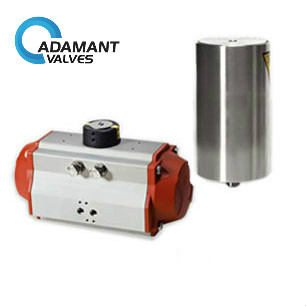

AV-11A Stainless Steel Pneumatic Actuator

Stainless Steel Pneumatic Actuator Application

AV-11A-A series vertical actuator applies to different kinds of valves for stainless steel pipeline system, such as butterfly valves, butterfly type ball valves, ball valves. Stainless steel pneumatic actuators available in spring return or double-acting configurations.

Stainless Steel Pneumatic Actuator Materials

Steel parts: AISI 304
Seal: VMQ/FPM/EPDM

Stainless Steel Pneumatic Actuator Standard Design:

• Vertical type with stainless steel 304 material
• Three types available:

Normally closed (NC)-Air to open and spring to close;
Normally open (NO)-Air to close and spring to open;
Air to Air (AA)-Air to open air to close

• Both single mount and double mount available as customers require.
• Air pressure: 5-8 bar (72-116psi)
• Rotary angle: 90 degrees
• Air tube connection: R1/8″ G1/8″
• With or without C-top and position sensor as customers require.
