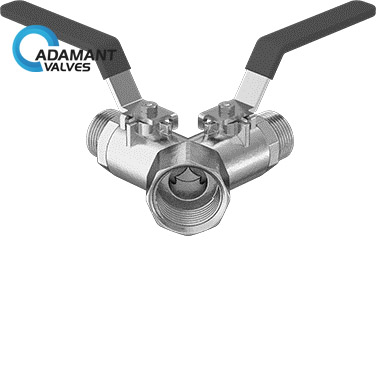

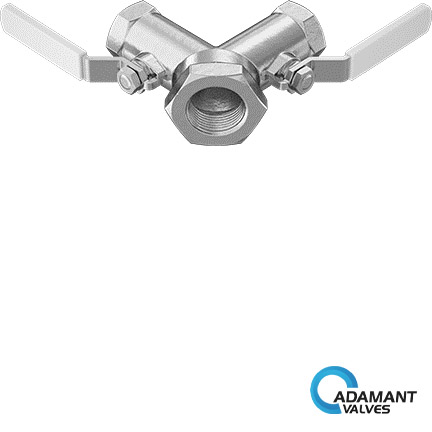

AV-25AO Air On/Off Valves
Availability :
In stock
Ball Material: Bronze/Chrome-Plated Brass
Temp. Range:
- NPT Female Inlet × NPT Female Outlet: -20 to 400℉
- NPT Female Inlet × NPT Male Outlet: -40 to 365℉
Flow Pattern: Y-Pattern
Air On/Off Valves Description
Turn airflow on and off with these valves. They have two balls to independently shut off airflow to one of two outlets from a single source. When closed, they vent air pressure to the atmosphere so you can disconnect air tools safely.
Air On/Off Valves Specifications
| Inlet
(Ports) |
Outlet
(Ports) |
Inlet Pipe Size | Outlet Pipe Size | Flow Coefficient (Cv) | Temp. Range, °F | Ball Material |
| NPT Female Inlet × NPT Female Outlet | ||||||
| 1 | 2 | 1 | 3/4 | 43 | -20 to 400 | Bronze |
| 1 | 2 | 1 1/4 | 3/4 | 43 | -20 to 400 | Bronze |
| NPT Female Inlet × NPT Male Outlet | ||||||
| 1 | 2 | 1 | 3/4 | 30 | -40 to 365 | Chrome-Plated Brass |
