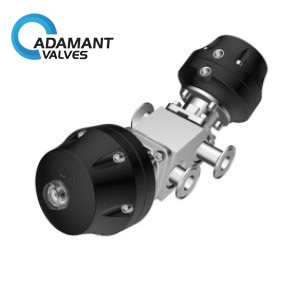

AV-4PTD 2-position 4-way Titanium Diaphragm Valve G0924.1

Availability : In stock

Size	1”-2”, DN25-DN50
Body material	Hastelloy C276/C22 Monel 400, 254SMO N08904 Titanium TA1/TA2
Outlet Connection	Clamp, weld, Special interface
Working Temp.	-20 to 150℃
Max. pressure	10 bar

2-position 4-way Titanium Diaphragm Valve G0924.1 Description

2-position 4-way Titanium Diaphragm Valve G0924.1 can be used as process control valves, dosing valves, sampling valves, and sterile drain valves in the pharmaceutical industry. This field-proven and the industry-preferred valve are better than the Stainless-Steel Valve in preventing the corrosion of fasteners.

In the food industry, the valve is often used as the guiding device, such as a sampling valve, and dosing valve. Internal polished finish Ra is less than or equal to 0.5um, to meet the requirements of the biopharmaceutical industry.

2-position 4-way Titanium Diaphragm Valve G0924.1 Specifications

Size	1”-2”, DN25-DN50
Body material	Hastelloy C276/C22 Monel 400, 254SMO N08904 Titanium TA1/TA2
Outlet Connection	Clamp, weld, Special interface
Working Temp.	-20 to 150℃
Max. pressure	10 bar

2-position 4-way Titanium Diaphragm Valve G0924.1 Applications

2-position 4-way Titanium Diaphragm Valve G0924.1 is widely used in pharmaceutical, biotechnology, health care, cosmetics, and food industry, etc.
