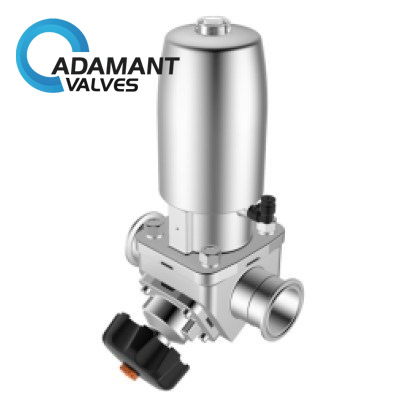

AV-4PW 2-position 3-way Titanium Diaphragm Valve G0923.8
Availability :
In stock
| Size | 1/4”-3/4”, DN6-DN15 |
| Body material | Hastelloy C276/C22 Monel 400,
254SMO N08904 Titanium TA1/TA2 |
| Connection | Clamp, welding, thread, flange, etc. |
| Working Temp. | -20 to 150℃ |
| Set pressure | 10 bar |
2-position 3-way Titanium Diaphragm Valve G0923.8 Description
2-position 3-way Titanium Diaphragm Valve G0923.8 is the upgrade model of AV-4PM Sanitary Pneumatic Mini Multi-Function Canned Diaphragm Valve. It is a manual type 2-position 3-way diaphragm valve. This field-proven and industry preferred valve is better than the Stainless Steel Valve in preventing the corrosion of fasteners.
2-position 3-way Titanium Diaphragm Valve G0923.8 Specifications
| Size | 1/4”-3/4”, DN6-DN15 |
| Body material | Hastelloy C276/C22 Monel 400,
254SMO N08904 Titanium TA1/TA2 |
| Connection | Clamp, welding, thread, flange, etc. |
| Working Temp. | -20 to 150℃ |
| Set pressure | 10 bar |
2-position 3-way Titanium Diaphragm Valve G0923.8 Applications
2-position 3-way Titanium Diaphragm Valve G0923.8 is widely used in food, beverage, dairy, brewing, pharmaceutical industries, etc. It is excellent for flow control as well as for open/close duties.
