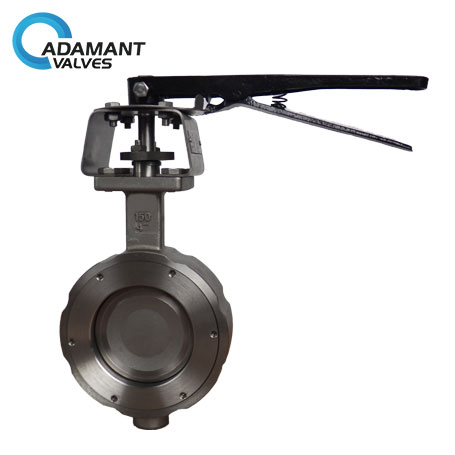

AV-1HWL Wafer High Performance Butterfly Valves, 316 Body, Lever Operator
SPECIFICATIONS:
Size range: 2″-60″ (50-1500mm)
(2″, 2.5″,3″, 4″, 5″, 6″, 8″, 10″, 12″, 14″, 16″, 18″, 20″, 24″, 26″, 28″, 30″, 32″, 34″, 36″, 40″, 42″, 48″, 54″, 60″)
(50mm, 65mm, 80mm, 100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 600mm, 750mm, 900mm, 1050mm, 1200mm, 1500mm)
Body type wafer, lug or double flange
Temperature range:
- Soft seat from -4°F (-20°C) to 356°F (180°C)
- Fire safe seat from -22°F (-30°C) to 1000°F (540°C)
- metal seat from -320°F (-196°C) to 1000°F (540°C)
ANSI class rating: Class 150, Class 300, Class 600
Pressure rating:
- Class 150 to 285 psi (1966 kPa)
- Class 300 to 740 psi (5100 kPa)
- Class 600 to 1440 psi (9931 kPa)
Top flange mounting pad: ISO 5211
Basic design: API 609, MSS-SP-68, BS 5155, ISO 5752
Shell/Seat Test: API 598
Metal to Metal seat leakage is rated at Class IV per ASME/FCI 70-2
Wafer High-Performance Butterfly Valves APPLICATION:
Adamant Valves is a professional manufacturer of soft seat, metal seat and fire-safe high performance butterfly valves, our valves are with double offset design, reach bi-directional bubble tight shutoff (zero leakage) by the use of a patented seat. Our High Performance Butterfly Valves are designed for critical applications in food and beverage processing, chemical industries, petrochemical industries, power plants, district heating. They provide exceptionally long and trouble-free service life, reducing total cost of ownership. Adamant valves are rigorously tested to meet demanding industry performance requirements. High Performance Butterfly Valves are designed for shutoff and throttling control of liquids and gas. The dynamic PTFE/RTFE seat provides bubble-tight shutoff in both directions. The unique disc design provides lower torque and longer cycle life.
Wafer High-Performance Butterfly Valves SPECIFICATIONS:
Size range: 2″-60″ (50-1500mm)
(2″, 2.5″,3″, 4″, 5″, 6″, 8″, 10″, 12″, 14″, 16″, 18″, 20″, 24″, 26″, 28″, 30″, 32″, 34″, 36″, 40″, 42″, 48″, 54″, 60″)
(50mm, 65mm, 80mm, 100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 600mm, 750mm, 900mm, 1050mm, 1200mm, 1500mm)
Body type wafer, lug or double flange
Temperature range:
- Soft seat from -4°F (-20°C) to 356°F (180°C)
- Fire safe seat from -22°F (-30°C) to 1000°F (540°C)
- metal seat from -320°F (-196°C) to 1000°F (540°C)
ANSI class rating: Class 150, Class 300, Class 600
Pressure rating:
- Class 150 to 285 psi (1966 kPa)
- Class 300 to 740 psi (5100 kPa)
- Class 600 to 1440 psi (9931 kPa)
Top flange mounting pad: ISO 5211
Basic design: API 609, MSS-SP-68, BS 5155, ISO 5752
Shell/Seat Test: API 598
Metal to Metal seat leakage is rated at Class IV per ASME/FCI 70-2
MATERIALS AND CORROSION PROTECTION:
Body materials: carbon steel ASTM A216 WCB or stainless steel 316 SS (A351-CF8M)
Disc in carbon steel ASTM A216 WCB or in stainless steel 316 SS (A351-CF8M)
One piece stem of stainless steel materials 17-4PH
Seat material: Soft seat (PTFE/RTFE), or Metal to Metal
Packing: PTFE or graphite
Wafer High-Performance Butterfly Valves FEATURES:
Wafer type butterfly valve with a double eccentric design
Suitable as the end of line valve up to nominal pressure
Replaceable, resilient carbon fibre reinforced RTFE seat
Operators: hand lever, worm gear operators, electric or pneumatic actuators
Face to face dimensions acc. to EN 558-1 series 20 (DIN 3202/K1)
Tight shut-off design
Excellent corrosion resistance
ISO 5211 mounting pad, permits direct mount actuation for both manual (lever and gear), pneumatic and electric actuators
Double offset configuration with conical angled disc design. Maximize flow and minimize resistance providing high Cv.
Seat available in either PTFE/RTFE or Metal. Both soft seats and Metal seats are interchageable.
Internal travel stop design to prevent over travel of the disc, minimizing possible seat damage
The heavy-duty handle and 10 position notch plates allow for positioning the valve disc to precise angle stops
STANDARD PRODUCTION RANGE | |||
. | ANSI Class 150 | ANSI Class 300 | ANSI Class 600 |
RATING – PSI | 285 | 740 | 1440 |
RATING – BAR | 20 | 50 | 100 |
SIZE – INCH | 2-60 | 2-48 | 2-24 |
SIZE – MM | 50-1500 | 50-1200 | 50-600 |
TESTING | API 598 | ||
FACT TO FACE SPECIFICATIONS | ANSI B16.10 / API 609 / MSS-SP-68 / ISO 5752 | ||
END FLANGE SPECIFICATIONS | ASME B16.5: Class 150, 300, 600
JIS B2210: 10K, 16K, 20K DIN ISO PN10, PN16, PN25, PN40 |
||
CONNECTION | Wafer, Lugged, Double Flanged | ||
ACTUATOR – MANUAL | Lever Handle, Worm Gear Operator | ||
ACTUATOR – AUTOMATIC | Electric Motor, Pneumatic Double Acting,
Pneumatic Spring Return |
MAIN MATERIALS | |||
. | ANSI Class 150 | ANSI Class 300 | ANSI Class 600 |
BODY | Carbon Steel (A216-WCB)
316 SS (A351-CF8M) |
||
DISC | 316SS (A351-CF8M) | ||
STEM | 17 / 4PH (A564-630) | ||
SEAT | PTFE, RTFE, 316 SS, Inconel, PTFE + 316 SS, RTFE + 316SS | ||
SHAFT BEARING | 316 SS + RTFE Impregnated, 316 SS + Graphite Impregnated | ||
PACKING SEAL | PTFE, Graphite | ||
SEAT MATERIALS and RATING | |||
PTFE | Class VI, Bubble Tight | ||
RTFE | Class VI, Bubble Tight | ||
316 SS | Class V | ||
INCONEL | Class V | ||
PTFE + 316 SS | Class VI Bubble Tight,
Class V w/ Preferred Flow After Fire |
||
RTFE + 316 SS | Class VI Bubble Tight,
Class V w/ Preferred Flow After Fire |
