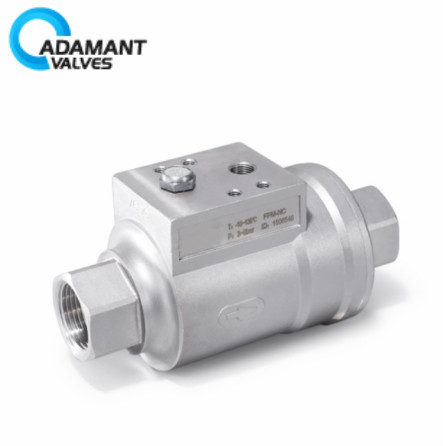

AV-SSV Sanitary Shuttle Valve
Availability :
In stock
Specifications:
| Working pressure | 0-16 bar (0-232psi) |
| Control pressure | 3-8 bar (43.5-116psi) |
| Control medium | Clean compressed air or neutral gas |
| Body Material | 316L/304/aluminum |
| Seal Material | EPDM EPDM/ fluoro rubber(FPM) |
| Applicable Media | FPM is suitable for most media except steam |
| Medium temperature | -20℃ – +150 ℃ (FPM), -20℃ – +130℃ (EPDM) |
| Ambient temperature | -20℃ – +80℃ |
| Connection type | Threaded (BSP, NPT, BSPT) |
| Control type | Single acting normally closed, normally open, double acting normally closed, double acting free state |
Sanitary Shuttle Valve Description:
Shuttle valve, also called OR valve, has a single pneumatic output from two separated inputs. Shuttle valve is small enough to fit right into the head of an actuator and saves space and weight. It usually used in panels and blocks.
Sanitary Shuttle Valve Specifications:
| Working pressure | 0-16 bar (0-232psi) |
| Control pressure | 3-8 bar (43.5-116psi) |
| Control medium | Clean compressed air or neutral gas |
| Body Material | 316L/304/aluminum |
| Seal Material | EPDM EPDM/ fluoro rubber(FPM) |
| Applicable Media | FPM is suitable for most media except steam |
| Medium temperature | -20℃ – +150 ℃ (FPM), -20℃ – +130℃ (EPDM) |
| Ambient temperature | -20℃ – +80℃ |
| Connection type | Threaded (BSP, NPT, BSPT) |
| Control type | Single acting normally closed, normally open, double acting normally closed, double acting free state |

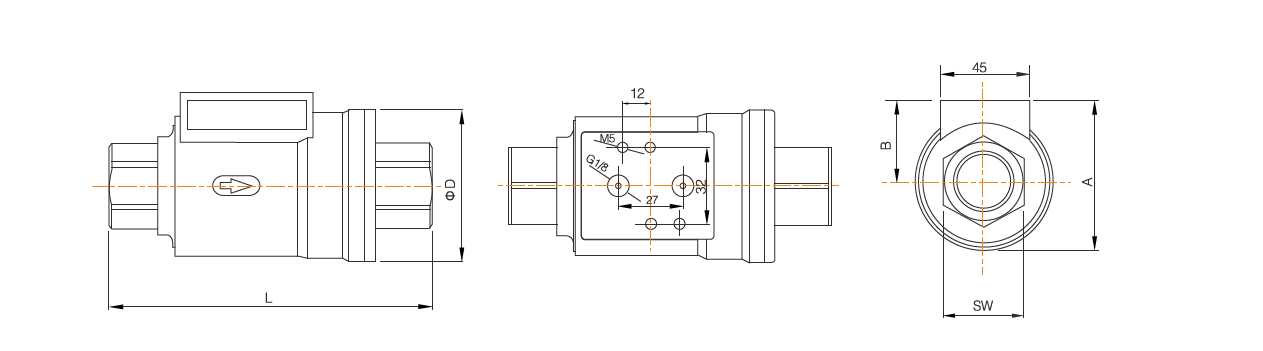

| Type 200 | AVDN-10 | AVDN-15 | AVDN-20 | AVDN25 | AVDN-32 | AVDN-40 | AVDN50 |
| Connector size | 3/8″ | 1/2″ | 3/4″ | 1″ | 1 1/4″ | 1 1/2″ | 2″ |
| A(mm) | 56 | 61 | 72 | 78 | 94 | 104 | 116 |
| φD(mm) | 46 | 52 | 64 | 69 | 86 | 96 | 108 |
| SW(mm) | 22 | 26.5 | 32 | 41 | 50 | 56 | 70 |
| B(mm) | 33 | 35 | 40 | 43 | 51 | 56 | 62 |
| L(mm) | 98 | 112 | 135 | 143 | 165 | 180 | 207 |
| weight(kg) | 0.76 | 0.94 | 1.43 | 1.85 | 2.98 | 3.66 | 5.64 |

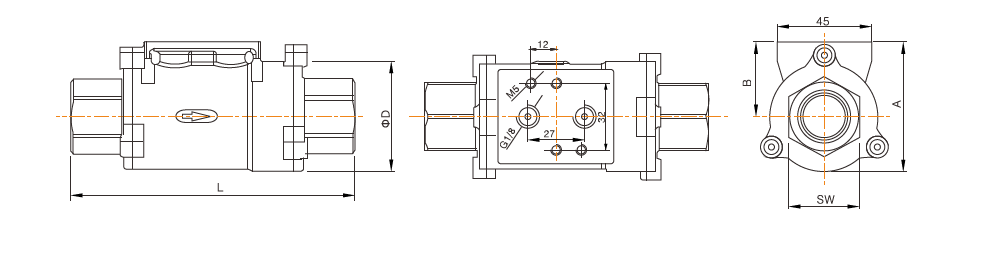

| Type 201 | AVDN-8 | AVDN-10 | AVDN-15 | AVDN20 | AVDN-25 | AVDN-32 | AVDN-40 | AVDN50 |
| Connector size | 1/4″ | 3/8″ | 1/2″ | 3/4″ | 1″ | 1 1/4″ | 1 1/2″ | 2″ |
| A(mm) | 49.5 | 49.5 | 53.3 | 63.5 | 70 | 85.5 | 95 | 109 |
| φD(mm) | 37 | 37 | 42.5 | 52 | 60 | 75 | 84 | 97 |
| SW(mm) | 22 | 22 | 26 | 32 | 40 | 49 | 53 | 68 |
| B(mm) | 31 | 31 | 32 | 37.5 | 40 | 48 | 53 | 60 |
| L(mm) | 98 | 98 | 112 | 135 | 143 | 165 | 180 | 207 |
| weight(kg) | 0.54 | 0.54 | 0.67 | 1.05 | 1.45 | 2.32 | 2.82 | 4.38 |
Sanitary Shuttle Valve Applications:
– Filling
– Ceramics
– Semiconductor cleaning
– Beer and drink
– Automobile
– Panels and blocks
