Yogurt Sampling Valves are used to treat high viscosity materials, such as yogurt, syrup, ice cream, etc. The valve is normally closed design, it will open when pushing the handle. The valve seat opens inside of the tank or other equipment that it can avoid opening by accident due to much pressure in the pipes. The design of completely drainage water is to avoid remains inside the valves.

Yogurt Sampling Valves Specifications

For detailed information, please contact us.

Yogurt Sampling Valves Applications

Yogurt Sampling Valves are used to treat high viscosity materials, such as yogurt, syrup, ice cream, etc.

Related products:

AV-7S Sanitary Sampling Valves, AV-7PA Pneumatic Type Aseptic Sampling Valves, AV-7A Aseptic Sampling Valves

The post AV-7YS Yogurt Sampling Valves appeared first on Adamant Valves.

Straight Sampling Valves are opened inside of the tank or other equipment that it can avoid opening by accident due to much pressure in the pipes.

Operating principle: The valve shaft and seal rise up when turning the handwheel clockwise. The valve is open for sampling.

When turning the handwheel anti-clockwise, the valve shaft and seal go down. The valve is closed.

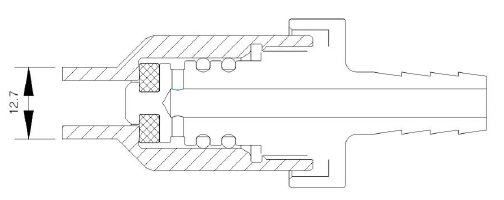

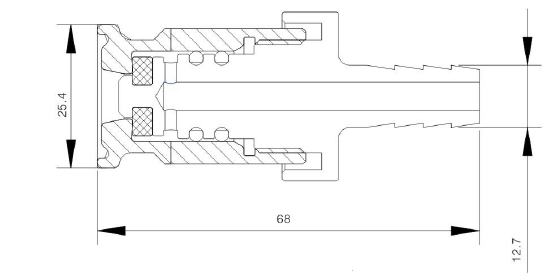

Straight Sampling Valves Specifications

Clamped

Welding

For more detailed information, please contact us.

Straight Sampling Valves Applications

Straight Sampling Valves are opened inside of the tank or other equipment that it can avoid opening by accident due to much pressure in the pipes.

Related products: AV-7S Sanitary Sampling Valves, AV-7PA Pneumatic Type Aseptic Sampling Valves, AV-7A Aseptic Sampling Valves

The post AV-7SV Straight Sampling Valves appeared first on Adamant Valves.

Characteristics:

Side pipe sanitary sampling valves are designed for sampling liquids on pharmaceutical, chemical, F&B, and cosmetics products.

O-Ring closing system.

Documentation:

Laser marking for traceability and validation processes. Material 3.1 certificates, FDA or USP, internal surface finishing check as standard.

Int. finishing: Ra ≤ 0,4 µm

Ext. finishing: Ra ≤ 0,8 µm Mirror Polished

Max Working Conditions: 12 bar (170 psi) and 150°C (300°F)

Installation: Horizontal installation recommended.

Sanitary Piston Valve Specifications

Sanitary Piston Valve Applications

Sanitary Piston Valve is suitable for chemical, sanitary, pharmaceutical applications.

Related products: AV-9MA Sanitary Manual Air Relief Valve With Lever, AV-7A Aseptic Sampling Valves, AV-7G Sanitary Gauges

The post AV-7P Sanitary Piston Valve appeared first on Adamant Valves.

The Sanitary No Retention Sampling Valve is mainly used for sample collection of materials in-tank equipment or pipelines. Founded in 2002, Adamant Valves is a trustworthy Sanitary No Retention Sampling Valve manufacturer, providing customers with high-precision Sanitary No Retention Sampling Valve at a very competitive price.

Sanitary No Retention Sampling Valve Specifications:

Options:

–        Connections: Butt-weld, sanitary clamp, flange, thread, etc. (DIN, IDF, SMS, RJT, 3A standard)

–        Seals and gaskets: EPDM as default, Silicone, or Viton (FPM) are available upon request.

Sanitary No Retention Sampling Valve Applications:

The Sanitary No Retention Sampling Valve can be applied in the following fields:

• Mainly used for sample collection of materials in-tank equipment or pipelines
• Can be installed at the lowest point of tank equipment or pipelines to drain the residual liquid

The post AV-7N Sanitary No Retention Sampling Valve appeared first on Adamant Valves.

AV-7S Sampling valves are used in piping systems or on tanks for sampling. It can also be assembled at the bottom of the tank or pipeline for residue drain. AV-7S Sanitary Sampling Valves are available with butt weld or sanitary clamp end connections with hose barb discharge as standard.

Its mainly applied to extract samples from tanks or pipelines. It also can be assembled at the bottom of the tank or pipeline to drain away from the remains.

Operating principle

When turning the hand wheel clockwise, the valve shaft and seal rise up. At this time, the valve is open for sampling. When turning the hand wheel anti-clockwise, the valve shaft and seal go down, at that time, the valve is closed.

Sanitary Sampling Valves Materials

Materials: AISI-316L
Size: 1/4”-3/4”
Seals: PTFE
Gasket: EPDM or NBR

Sanitary Sampling Valves Standard Design

• End connection: threaded, clamp, welded as customers require.
• Sampling port size available: 1/4″, 3/8″, 1/2″,3/4″
• Max. working pressure: 10bar
• Max. working temperature: 248°

Sanitary Sampling Valves Technical Specification

The AV-7S-1 type is used for low viscosity materials, such as water, beer, wine, fluid milk, and so on. When rotating the handle wheel clockwise, the valve will be open for sampling. When rotating the handle wheel anti-clockwise, the valve will be closed.

The AV-7S-2 type is used to treat high viscosity materials, such as yogurt, syrup, ice cream, etc. The valve is normally closed design, it will open when pushing the handle and will return to a nominal closed position automatically by spring.

Related Products of Sanitary Sampling Valves

AV-7A Aseptic Sampling Valves

AV-7PA Pneumatic Type Aseptic Sampling Valves

AV-7G Sanitary Gauges

The post AV-7S Sanitary Sampling Valves appeared first on Adamant Valves.

AV-7G series sanitary gauge is mainly applied to tank equipment to observe the conditions of inside liquids. It can be also used for sampling.

Sanitary Gauges Materials

Materials: AISI-316L
Size: 1/4”-3/4”
Seals: PTFE

Sanitary Gauges Technical Specification

• End connection: threaded, clamp, welded as customers require.
• Size available: 1/4″, 3/8″, 1/2″, 3/4″
• Max. working pressure: 147psi (10bar)
• Min. working pressure: Applicable under vacuum
• Working temperature: 14 ~ 248°F (-10 ~ 120°C)

The post AV-7G Sanitary Gauges appeared first on Adamant Valves.

AV-7PA series is a stainless steel aseptic sampling valve with a pneumatic actuator; it is wildly used in the food, dairy, brewery, winery, and many other hygienic industries.

Pneumatic Type Aseptic Sampling Valves Materials

Materials: AISI-316L
Size: DN8
Diaphragm: Silicone (for standard valve), EPDM (for a valve with micro type connector)

Pneumatic Type Aseptic Sampling Valves Standard Design

A pneumatic aseptic sampling valve is made from four parts: valve body, valve head, a pneumatic actuator, and one piece of the diaphragm. A rubber diaphragm valve is put at the axis of the valve head, acting as an extensible valve core.

• End connections can be welded, clamped, or threaded, only one size DN8 available.
• Valve open: sampling valve close: sterilization

Open                                   Close

Technical Specification

Nominal Pressure:
Max. product pressure: 87psi (6bar)
Temperature:
Max. sterilization temperature: 130°C, dry steam: 121°C (2bar).
Steam must be dry because condensed water will damage the diaphragm. The diaphragm should be replaced after 100 times samplings or sterilizations.

The post AV-7PA Pneumatic Type Aseptic Sampling Valves appeared first on Adamant Valves.

AV-7A stainless steel aseptic sampling valves are used in the food, dairy, brewery, winery, and many other hygienic industries.

Aseptic Sampling Valves Materials

Materials: AISI-316L
Size: DN8
Diaphragm: Silicone (for standard valve), EPDM (for a valve with micro type connector)

Aseptic Sampling Valves Standard Design

Aseptic sampling valve is made from three parts: valve body, valve head, and one piece of the diaphragm. A rubber diaphragm valve is put at the axis of the valve head, acting as an extensible valve core.

• End connections can be welded, clamped, or threaded, only one size DN8 available.
• Handle type: rotary handle, key handle
• Valve open: sampling valve close: sterilization

Open                                    Close

Technical Specification of Aseptic Sampling Valves

Nominal Pressure:
Max. product pressure: 87psi (6bar)
Temperature:
Max. sterilization temperature: 130°C, dry steam: 121°C (2bar).
Steam must be dry because condensed water will damage the diaphragm. The diaphragm should be replaced after 100 times samplings or sterilizations.

The post AV-7A Aseptic Sampling Valves appeared first on Adamant Valves.
