AV-4MRW Sanitary Manual 2-way Radial Diaphragm Valve with Weld End
Specifications: Size 3/4”-2.5”, DN20-DN65 Working temperature -10 °C-120 °C (EPDM/Silicon) Working pressure 5 bar-6 bar Body material 304, 316L Sealing material EPDM/Silicon Connection Weld, clamp, and other special connection Finishing Ra≤0.5 μm Standards ISO, DIN, IDF, SMS, 3A

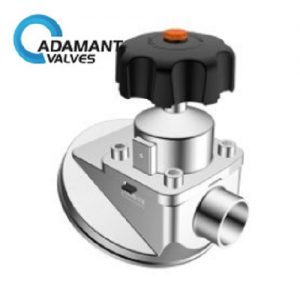

AV-4MTBD Manual Tank Bottom Diaphragm Valve
Size DN10-DN65, 1/2" to 3" Body Material AISI 316L, (EN1.4301/EN1.4404).ASME BPE 316L Temperature -20℃ to +150 ℃ Max pressure 145psi (10bar) Seal EPDM, FKM, PTFE Operation Manual, pneumatic Certification US 3-A, FDA, CE PED/2014/68/EC, Certification Connection type Tri-Clover/ Clamp End, Thread End, Butt Weld End
AV-4MW3 3-Way Sanitary Diaphragm Valve with Butt-Weld Ends, Manual Type
Specification Type Diaphragm Valve Reference No. AV-4M-3 Sizes 3/4" to 3" (3/4", 1", 1 1/2", 2" 2 1/2", 3") Diameter Nominal DN20-DN80 (DN20, DN25, DN40, DN50, DN65, DN80) Valve body material AISI 316L /304 Valve seat EPDM+PTFE Max. working pressure 145psi (10bar) Temperature range -22 ~ 266°F...
AV-4MWU Sanitary U Type Diaphragm Valves with Butt-weld Ends
Specification: Sizes available from 3/4" to 2" (3/4", 1", 1 1/2", 2"") DN20-DN80 (DN20, DN25, DN40, DN50) Valve body: AISI 316L /304. Valve seat: EPDM+PTFE Max. working pressure: 145psi (10bar) Working temperature range: -22 ~ 266°F (-30 ~ 130°C), or higher upon request. Inside treatment:...

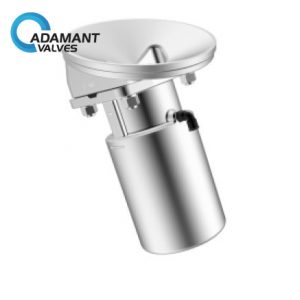

AV-4PB Pneumatic Tank Bottom Titanium Diaphragm Valve G0922.1
Size: 1″-2″, DN25-DN50 Material: Hastelloy C276/C22 Monel 400, 254SMO N08904 Titanium TA1/TA2 Max. working pressure: 145psi (10bar) Working temperature range: -22 ~ 266℉(-30 ~ 130℃) or higher upon request Inside treatment: Ra 16-32μin (0.4-0.8μm), Ra 25 (0.5μm) is the default.
Hot
AV-4PC Sanitary Diaphragm Valves with Tri-clamp Ends, Pneumatic Type
Specification Type Diaphragm Valve Reference No. AV-4PC Sizes 1" to 3" (1", 1 1/2", 2" 2 1/2", 3") Diameter Nominal DN15 to DN100 (DN15, DN20, DN25, DN40, DN50, DN65, DN80, DN100) Valve body material AISI 316L, 304 Valve seat EPDM+PTFE Max. working pressure Normally closed EPDM 87psi (6bar),...

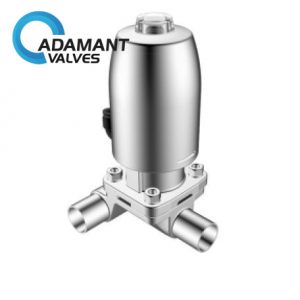

AV-4PD 2-position 3-way Titanium Diaphragm Valve G0923.2
Size 1/4”-3/4”, DN6-DN15 Body material Hastelloy C276/C22 Monel 400, 254SMO N08904 Titanium TA1/TA2 Connection Clamp, welding, thread, flange, etc. Working Temp. -20 to 150℃ Set pressure 10 bar
AV-4PG 4-position 4-way Titanium Diaphragm Valve G0944.2
Size 1/4”-3/4”, DN6-DN15 Body material Hastelloy C276/C22 Monel 400, 254SMO N08904 Titanium TA1/TA2 Connection Clamp, welding, thread, flange, etc. Working Temp. -20 to 150℃ Set pressure 10 bar
