Manual Stainless Steel Sanitary Diaphragm Bleed Valve With Tri-clamp

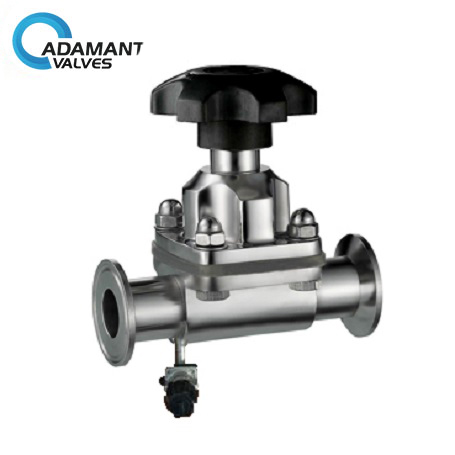

AV-4BMC Sanitary Diaphragm Bleed Valve With Tri-clamp Ends, Manual Type

Availability : In stock

Specification

Type	Diaphragm Sampling Valve
Reference No.	AV-4BMC
Sizes	1/2″ to 4″ (1/2″, 3/4″, 1”, 1 1/2″, 2″, 2 1/2″, 3″, 4″)
Diameter Nominal	DN15 to DN100 (DN15, DN20, DN25, DN40, DN50, DN65, DN80, DN100)
Valve material	Body: cast iron, ductile iron, carbon steel, 316L, 304, WCB Bonnet: cast iron, ductile iron, carbon steel, 316L, 304, WCB Lining: rubber Diaphragm: rubber Disc: cast iron Stem: carbon steel, 316L, 304, WCB Handwheel: cast iron
Maximum working pressure	10bar
Drive mode	manual / pneumatic
Maximum working temperature	150 ° C
Applicable medium	EPDM-steam, alcohol, oil, fuel, steam, neutral gas or liquid, organic solvent, acid-based solution, etc.
End Connections	Tri-clamp, butt welding (G/DIN/ISO), flange or others upon request
Pressure rating	PN0.6, 1.0, 1.6

Sanitary Diaphragm Bleed Valve Description

The elastic sealing switch has a curved design structure for the valve body sealing groove to ensure no internal leakage;
Streamlined flow path, reducing drag;
The valve body and the cover are separated by the intermediate diaphragm, so that the valve cover, the valve stem, and the diaphragm are not eroded by the medium;
Diaphragm replaceable, low maintenance costs
Visual position display switch status
A variety of surface polishing techniques, no dead ends, no residue in the normal position.
Compact and suitable for use in tight spaces.
The diaphragm meets the safety standards set by the FDA and UPS authorities for the pharmaceutical and food industries.

Sanitary Diaphragm Bleed Valve Specification

Sizes	1/2″ to 4″ (1/2″, 3/4″, 1”, 1 1/2″, 2″, 2 1/2″, 3″, 4″)
Diameter Nominal	DN15 to DN100 (DN15, DN20, DN25, DN40, DN50, DN65, DN80, DN100)
Valve material	Body: cast iron, ductile iron, carbon steel, 316L, 304, WCB
	Bonnet: cast iron, ductile iron, carbon steel, 316L, 304, WCB
	Lining: rubber
	Diaphragm: rubber
	Disc: cast iron
	Stem: carbon steel, 316L, 304, WCB
	Handwheel: cast iron
Maximum working pressure	10bar
Drive mode	manual / pneumatic
Maximum working temperature	150 ° C
Applicable medium	EPDM-steam, alcohol, oil, fuel, steam, neutral gas or liquid, organic solvent, acid-based solution, etc.
End Connections	Tri-clamp, butt welding (G/DIN/ISO), flange or others upon request
Pressure rating	PN0.6, 1.0, 1.6

Sanitary Diaphragm Bleed Valve Applications

This valve is designed to control non-corrosive or general corrosive media. The valve body surface is unlined or covered with a variety of rubbers for different operating temperatures and fluid lines.
