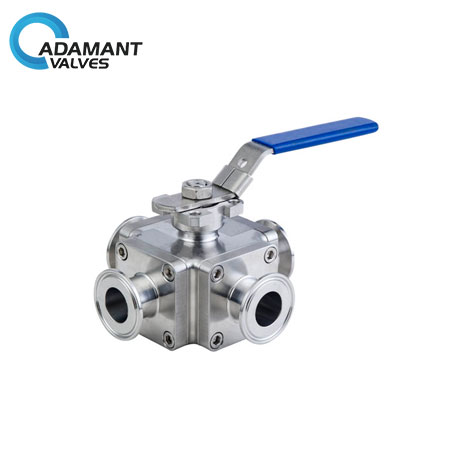

AV-2MFC4 Sanitary 4-Way Cross Ball Valve with Tri-Clamp Ends, Manual Type
Specification:
Sizes are available from DN25 / 1″ to DN100 / 4″.
Valve body can be AISI 304 or AISI 316L.
Valve seat: Teflon (PTFE)
Max. working pressure: 145psi (10bar)
Temperature range: -4 ~ 302°F (-20 ~ 150°C), -22 ~ 392°F (-30 ~ 200°C) option.
End connections: butt-weld, tri-clamp, or others available upon request.
Surface treatment: Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin is the default.

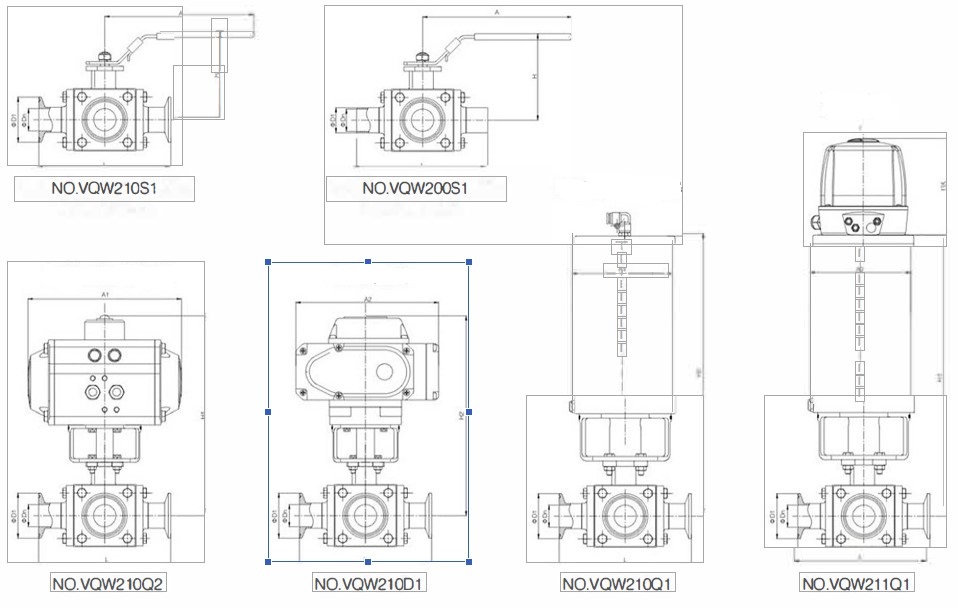

4-way type
Sanitary 4-Way Cross Ball Valve Application
AV-2F-4 series sanitary 4-way ball valve is extensively used in food & beverage processing, brewing, oil refinery, cosmetic, pharmaceutical, and chemical industries to control medium flow. The 4-way port design makes it an optimum choice for viscous and particulate liquids.
Sanitary 4-Way Cross Ball Valve Specification
Sizes are available from DN25 / 1″ to DN100 / 4″.
Valve body can be AISI 304 or AISI 316L.
Valve seat: Teflon (PTFE)
Max. working pressure: 145psi (10bar)
Temperature range: -4 ~ 302°F (-20 ~ 150°C), -22 ~ 392°F (-30 ~ 200°C) option.
End connections: butt-weld, tri-clamp, or others available upon request.
Surface treatment: Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin is the default.

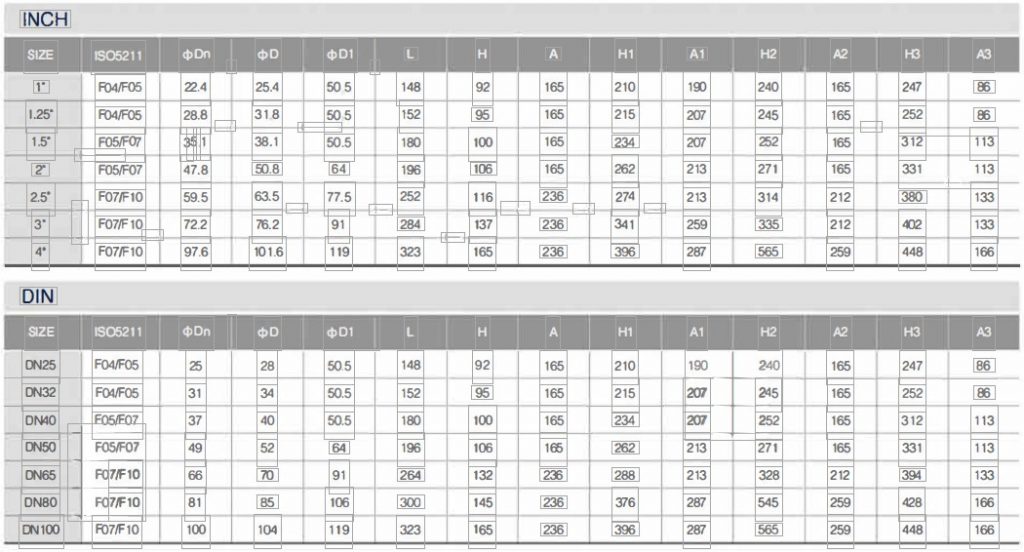

4-way type
Operating Torque(N.m.)
Sanitary 4-Way Cross Ball Valve Options
The valve seat is Teflon (PTFE), gaskets can be EPDM, VMQ (Silicone), or Viton (FPM), all complying with FDA 21CFR177.2600.
End connection can be butt-welded, sanitary clamp, or others upon request.
| Technical Parameters | |||
| Steel material | Product wetted steel parts | AISI 304 or 316L
(1.4306 / 1.4404) |
Provided with material inspection report |
| Other steel parts | AISI 304 | ||
| Seal material | Standard | Teflon (PTFE) | All seal materials comply with FDA 21CFR117.2600 |
| Options | N/A | ||
| Pressure | Working pressure | ≤145psi (10bar) | |
| Supply pressure for air actuator | 70 ~ 116psi (5 ~ 8bar) | ||
| Temperature | Working temperature | -4 ~ 302°F (-20 ~ 150°C), -22 ~ 392°F (-30 ~ 200°C) option. | |
| Surface treatment | Inside surface treatment | Ra 16 ~ 32µin (0.4 ~ 0.8µm) | |
| Outside surface treatment | Ra 32 ~ 64µin (0.8 ~ 1.6µm) | ||
| Connection | End connections can be butt-welded, sanitary clamp, or others upon request. | ||
/wp-content/uploads/2016/01/AV-2-Sanitary-Ball-Valves.pdf |
