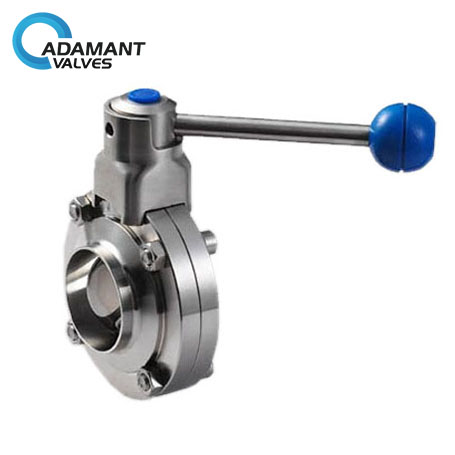

AV-1MW Sanitary Butt-weld Butterfly Valve with Pull Handle

Availability : In stock

Specification

Type	Butterfly Valve
Reference No.	AV-1MW-P
Sizes	1/2″ to 12″ (1/2″, 3/4″, 1”, 1 1/2″, 2″, 2 1/2″, 3″, 4″, 5″, 6″, 8″, 10″, 12″)
Diameter Nominal	DN15 – DN300 (DN15, DN20, DN25, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300)
Valve body material	AISI 304 or AISI 316L, 304L and 316 materials
Max. working pressure	145psi (10bar) for DN25/1″-DN100/4″; 116psi (8bar) for DN125/5″-DN150/6″; 73psi (5bar) for DN200/8″-DN300/12″
Temperature range	14 ~ 248°F (-10 ~ 120°C) with EPDM seat, -58 ~ 356°F (-50 ~ +180°C) with VMQ (Silicone) seat
End connections	butt-welded
Operation	4-position Pull handle as the product photo shows
Surface treatment	Ra 16-32μin (0.4-0.8μm), Ra 25 (0.5μm) is the default.

Reference Price: $119-435

Sanitary Butt-weld Butterfly Valve Description

Adamant’s Sanitary Butt-weld Butterfly Valve with Pull Handle is constructed from 316 Stainless Steel with a 32Ra ID/OD polish. Butt-weld is available with your choice of end connection.

They are ideal for use in food or drink processing and other clean service applications. All of Adamant’s products include an ISO 5211 mounting pad for the direct mounting of actuators. Direct mount eliminates the need for extra space, weight, and cost. A full range of accessory items is available including pneumatic and electric actuators, limit switches, solenoid valves, and manual override devices.

Sanitary Butt-weld Butterfly Valve Application

AV-1MW series is a manual type sanitary butterfly valve with butt-welded / butt-welded ends, which is widely used in process piping systems for isolation and control. AV-1MW butterfly valve operates manually.

Sanitary Butt-weld Butterfly Valve Specification

Type	Butterfly Valve
Reference No.	AV-1MW-P
Sizes	1/2″ to 12″ (1/2″, 3/4″, 1”, 1 1/2″, 2″, 2 1/2″, 3″, 4″, 5″, 6″, 8″, 10″, 12″)
Diameter Nominal	DN15 – DN300 (DN15, DN20, DN25, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300)
Valve body material	AISI 304 or AISI 316L, 304L and 316 materials
Max. working pressure	145psi (10bar) for DN25/1″-DN100/4″; 116psi (8bar) for DN125/5″-DN150/6″; 73psi (5bar) for DN200/8″-DN300/12″
Temperature range	14 ~ 248°F (-10 ~ 120°C) with EPDM seat, -58 ~ 356°F (-50 ~ +180°C) with VMQ (Silicone) seat
End connections	butt-welded
Operation	4-position Pull handle as the product photo shows
Surface treatment	Ra 16-32μin (0.4-0.8μm), Ra 25 (0.5μm) is the default.

Sanitary Butt-weld Butterfly Valve Options

Valve body and disc material can be AISI 304 or AISI 316L, 304L and 316 materials are available upon request.
The seat and gasket can be EPDM, VMQ (Silicone) or Viton (FPM), all complying with FDA 21CFR177.2600.
End connection can be butt-welded, sanitary tri-clamp, threaded, flanged, I-line or others upon request.
Handles: 4-position pull handle; multi-position handle with plastic cover or in pure stainless steel.

Actuators to reach automatic operation: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), and electric actuator.

NC operated: normally closed (fail closed)—air to open, spring to close
NO operated: normally open (fail open)—air to close, spring to open
AA operated: double acting—air to open, air to close

Valve intelligent control: position sensor, C-top controller, C-top controller (AS-I)
Standards: DIN, SMS, ISO / IDF, BS / RJT, and ASME / BPE

Sanitary Butt-weld Butterfly Valve Technical Parameters

Steel material	Product wetted steel parts	AISI 304 or 316L (1.4301 / 1.4404)	Provided with material inspection report
	Other steel parts	AISI 304
Seal material	Standard	EPDM	All seal materials comply with FDA 21CFR177.2600
	Options	VMQ / Viton (FPM)
Pressure	Working pressure	≤145psi (10bar)
	Supply pressure for air actuator	70 ~ 116psi (5 ~ 8bar)
Temperature	Working temperature	EPDM: 14 ~ 248°F (-10 ~ 120°C) VMQ (Silicone): -58 ~ 356°F (-50 ~ +180°C) Viton (FPM): -22 ~ 428°F (-30 ~ +220°C)
	Sterilization temperature	150°C (302°F), Max. 20 min
Surface treatment	Inside surface treatment	Ra 16 ~ 32µin (0.4 ~ 0.8µm)
	Outside surface treatment	Ra 32 ~ 64µin (0.8 ~ 1.6µm)
Connection	End connections: butt-welded, sanitary clamp, male and female threaded, flanged, I-line or others upon request.
