AV-4BMC Sanitary Diaphragm Bleed Valve With Tri-clamp Ends, Manual Type
Specification Type Diaphragm Sampling Valve Reference No. AV-4BMC Sizes 1/2" to 4" (1/2", 3/4", 1”, 1 1/2", 2", 2 1/2", 3", 4") Diameter Nominal DN15 to DN100 (DN15, DN20, DN25, DN40, DN50, DN65, DN80, DN100) Valve material Body: cast iron, ductile iron, carbon steel, 316L,...
AV-4MC Sanitary Diaphragm Valves with Tri-clamp Ends, Manual Type, Plastic Handwheel
Specification: Sizes available from 1" to 3" (1", 1 1/2", 2" 2 1/2", 3"), DN25-DN80 (DN25, DN40, DN50, DN65, DN80) Valve body: AISI 316L /304. Valve seat: EPDM+PTFE Max. working pressure: 145psi (10bar) Working temperature range: -22 ~ 266°F (-30 ~ 130°C), or higher upon request....
AV-4MIMC Sanitary Mini Diaphragm Valves with Tri-clamp Ends, Manual Type
Specification: Mini type sizes available: 1/4", 3/8", 1/2", 3/4" Valve body: AISI 316L /304. Valve seat: EPDM+PTFE Max. working pressure: 145psi (10bar) Working temperature range: -22 ~ 266°F (-30 ~ 130°C) or higher upon request Inside treatment: Ra 16-32μin (0.4-0.8μm), Ra 25 (0.5μm) is the...
AV-5MS Sanitary Manual Shutoff And Divert Valves
Materials Materials: AISI-316L, AISI 304 Size: 1''-4'' Seal: PTFE Options: Silicone, EPDM, Viton Elastomers: EPDM Options: Viton, Silicone Other seals: EPDM all seals complying with FDA21CFR177.2600
AV-5SMA Sanitary Manual Angle Seat Valves
Specification: Size 3/8" - 3", DN10-DN80 Working pressure 0-10 bar(0-145psi) Body Material CF8/304, CF8M/316 Max working temperature 120°C, 180°C Connection Thread, clamp, flange, BSP, BSPT, NPT, DIN or others upon request. Manual Plastic handwheel, Stainless steel wheel, fine-tuning handwheel
AV-FBGV Flanged Brass Gate Valve
Materials: brass/bronze Size: DN20-DN100 Max Temp. : -20℃-120℃ Set Pressure: 1.6MPa Applicable Medium: water, non-corrosive medium

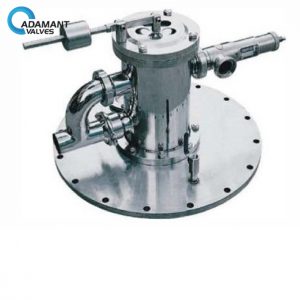

AV-GAZ1 Sanitary Tank-top Assembly Model GAZ-1D
Gasket: Silicone/EPDM/NBR/FPM (FDA 177. 2600). Material: 304 (1. 4301), 316L (1. 4404) Internal surface: 0.8um-0.4um Outside surface: Mirror polished, Matte, sand-blasting finished. Sensitive vacuum set points for precise operation. Available in 2 types: single/double seat. Significantly reduced risk of cross-contamination.

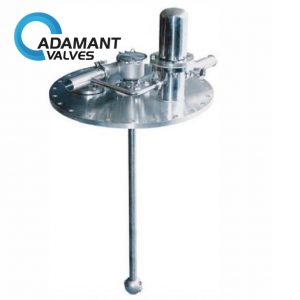

AV-GAZ2 Sanitary Tank-top Assembly Model GAZ-2D
Gasket: Silicone/EPDM/NBR/FPM (FDA 177. 2600). Material: 304 (1. 4301), 316L (1. 4404) Internal surface: 0.8um-0.4um Outside surface: Mirror polished, Matte, sand-blasting finished. Sensitive vacuum set points for precise operation. Available in 2 types: single/double seat. Significantly reduced risk of cross-contamination.
AV-GAZ3 Sanitary Tank-top Assembly Model GAZ-3D
Gasket: Silicone/EPDM/NBR/FPM (FDA 177. 2600). Material: 304 (1. 4301), 316L (1. 4404) Internal surface: 0.8um-0.4um Outside surface: Mirror polished, Matte, sand-blasting finished. Sensitive vacuum set points for precise operation. Available in 2 types: single/double seat. Significantly reduced risk of cross-contamination.
