Solenoid Operated Valves are solenoid-operated 2-way closed poppet valve, which is used to lock a load in position. When energized the poppet opens and releases the load from 1 to 2. De-energized the valve allows free flow from 2 to 1.

In the energized position it should be noted that 2 to 1 flow is restricted to only a pilot flow rate If the free flow is required in both directions when energized, another valve type should be used. Please contact us.

This valve can also be used as a directional valve.

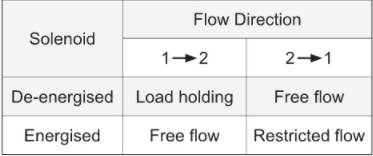

Energisation Chart

Manual override options are available.

Sanitary Solenoid Operated Valves Specifications

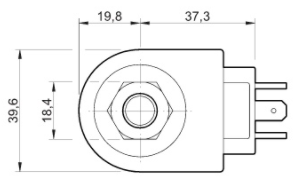

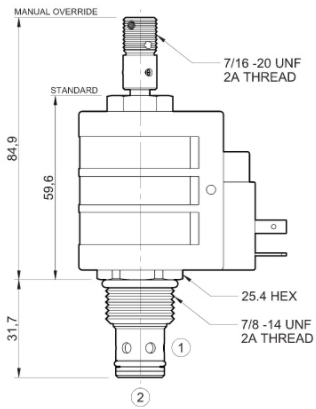

Dimensions [mm]

Performance

Sanitary Solenoid Operated Valves Applications

Solenoid Operated Valve is used as a directional valve.

Related products: Sanitary Pressure Control Valves, AV-1HMU High-Performance Manual Ultra-Thin Ball Valve With Flange Connection, AV-4MTBR Sanitary Tank Bottom Radial Diaphragm Valve, AV-24B Sanitary Bellow Control Valves

The post AV-24S Sanitary Solenoid Operated Valves appeared first on Adamant Valves.

The direct-acting motor valve of type 3285 is used for the dosing of liquids and gases in closed or open control loops. The valve features a stepper motor as the actuator. The integrated electronics simplifies the process integration; additional actuation modules are not necessary. The motor’s power consumption to hold a specific opening position of the valve is zero. This key feature can reduce the energy consumption of a plant dramatically and thus make it more efficient.

Actuator isolated from the flow path

Excellent range and fast response times

Low power consumption

Orifice sizes 8 to 25 mm

Versions: Standard, positioner, process controller

Sanitary Proportional Valves Specifications:

Sanitary Proportional Valves Applications:

Sanitary Proportional Valves are suited to applications where output pressure will vary – either in steps or continuously. Continuous output pressure is where pressure is continually increased at a set rate. Proportional Valves can be interconnected, for example, the output from one being used as an input to another.

The post AV-24P Sanitary Proportional Valves appeared first on Adamant Valves.

The two way solenoid valve is an automated basic component used to control fluids, usually connected to other valves. The 2-Way solenoid valve has one inlet port and one outlet port. When the valve is de-energized, the valve seal on the seat to shut off the gas or flow makes the valve keep closed. When the coil is energized, the core seal is pulled into the solenoid coil, and then the valve opens. The principle of a normally open solenoid valve is the same, but the valve seal keeps open.

2-Way Solenoid Valve Applications

– Press Room & Metal Stamping
– Heating equipment
– Automotive
– Analytical & Diagnostic Equipment

2-Way Solenoid Valve Technical Parameters

The post AV-2WSV 2-Way Solenoid Valve appeared first on Adamant Valves.
