Sanitary Regulating Valve G16 helps control downstream water pressure in commercial and residential systems, which is made of Titanium TA1/TA2. This field-proven and industry preferred valve is better than the Stainless Steel Valve in preventing the corrosion of fasteners.

Sanitary Regulating Valve G16 Specifications

Sanitary Regulating Valve G16 Applications

Sanitary Regulating Valve G16 is widely used in food, beverage, dairy, brewing, pharmaceutical industries, etc. It is excellent for flow control as well as for open/close duties.

Related products:

AV-4S Sanitary Series Diaphragm Valves, AV-4MWU Sanitary U Type Diaphragm Valves With Butt-Weld Ends, AV-4MIPC Sanitary Mini Diaphragm Valves With Tri-Clamp Ends, Pneumatic Type

The post AV-6RG Sanitary Regulating Valve G16 appeared first on Adamant Valves.

AV-6 series regulating valve is widely used in the sanitary fluid pipeline system to regulate pressure and flow.

Sanitary Divert Seat Valves Materials

Materials: AISI-316L/ AISI 304
Size: 1”-2”
Plug and seal: EPDM, or others upon request.

Type: Manual, Pneumatic, Electric

Sanitary Divert Seat Valves Working Principle

This type of regulating valve is operated by a handwheel. While the handwheel is adjusted clockwise, pressure and flow will decrease gradually until the valve closes; While the handwheel is adjusted anticlockwise, pressure and flow will increase gradually until the valve is fully open; (Gradually adjust the conical plug, and then lock the plug at the desired position with bolts.)

Sanitary Divert Seat Valves Standard Design

• Valve body and valve stem with stopper are made of stainless steel AISI 304 or acid-resistant stainless steel AISI 316L.
• Valve body OD sand polished, the valve stem is strengthened by enhanced chromium plating.
• Gasket and lip seal use EPDM material with high thermo-stability.

Seal Features:
Sterile, no dead
Elastic compression, friction-free, longevity by approximately 3.000.000 umes Vacuum and high tempera1ure 150’1:: not falling the spool

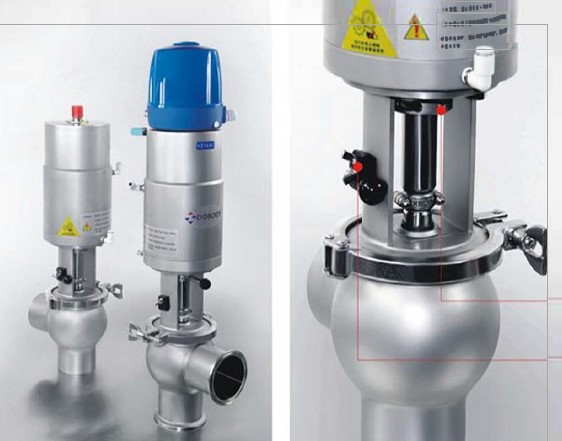

Design and features:

Compact and robust design.
Size: DN25/1′ to DN 100/4′
Normally closed (NC) in the standard version.
The valve can be changed ( 180° )to normally open (NO) by simply reversing the position of the pneumatic actuator
Hygienic design according to 3A standard
360° adjustable body
Easy assembly/disassembly of internal parts by loosening a clamp fastener
Standard weld connection (mm or inch)

Technical specifications

+ Size: DN25-DN100/1′-4″
+ Working temperature: -10’C to 120°C (EPDM) 14° F to 248° F, 140’C/284° F (SIP, max. 30min)
+ Max. Working pressure: 10bar 145PSI
+ Compressed air pressure: 5-7bar
+ Air connecitons: G1/8′ (BSP)

Options

+ Gaskets: FPM (viton (R)) in compliance with FDA 177.2600
Connections: DIN, SMS, RJT,IDF
Double-acting pneumatic actuator
External position sensor
Steam barrier (if shaft sterilisation is required)
Body jacket insulation
Valve position regulator
Double stop actuator
Diaphragm type valve cavity
C-TOP control unit
Surface finish: Ra.;;0.5 µ m
Manual operated.

Valve position can be adjusted divert seat
