Sanitary Pressure Gauges are specially designed to exceed the demanding safety requirements of the food, dairy, beverage, pharmaceutical, and biotech applications.

Sanitary Pressure Gauge Specifications

Sanitary Pressure Gauge Applications

Sanitary Pressure Gauges are specially designed to exceed the demanding safety requirements of food, dairy, beverage, pharmaceutical, and biotech applications.

Our Sanitary Pressure Gauges are best suited for the Food/Beverage & Pharmaceutical industry.

Related products: XMP PRESSURE TRANSMITTER, SANITARY GAUGES, HIGH PERFORMANCE NEEDLE VALVE

The post AV-13PG Sanitary Pressure Gauge appeared first on Adamant Valves.

When additional space is required between the valve and operator for safety or insulation, there is a variety of Extension Brackets available in 304SS or aluminum for ball valves. These include open-air brackets that provide fast cooling of heat coming from the valve and closed extension bonnets that allow easy addition of insulation blankets. Both are available in custom heights if required. Close-coupled mounting kits are intended to reduce the overall height of the assemblies. These are designed to have as little as ¾” between the top of the valve and the bottom of the actuator.

Extension Brackets Specifications

Size: 1/4” through 4”

Materials: 304 Stainless Steel, Aluminum

Features:

Economy Open Style, Enclosed Style, Custom Heights, Locking Mechanism, Improved Accessibility, Operator Protection, High Temp Applications, Cryogenic Applications

Standards:

ISO 5211 Mount Pad

Options:

Lever, Locking Lever, Oval, Locking Oval, Extended Height, Close Coupled

Extension Brackets Applications

Extension Brackets are typically used to provide relief protection in low and fixed-flow circuits

Related products: AV-11H-A Sanitary Handles & Actuators, AV-2AH Air Headers, AV-13 Sanitary Tank Spray Balls

The post AV-13EB Extension Brackets appeared first on Adamant Valves.

Sanitary Air Vent is used to prevent vacuum or change of pressure occurred in a tank.

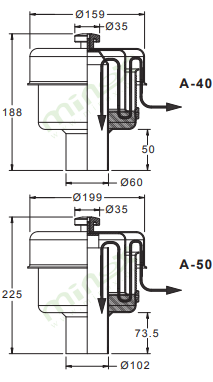

Sanitary Air Vent Specifications

Sanitary Air Vent Applications

To prevent vacuum or change of pressure occurred in a tank.

Related products: AV-3A Sanitary Air Blow Check Valve, AV-9MA Sanitary Manual Air Relief Valve With Lever, AV-9A Sanitary Air Relief Valve

The post AV-13SA Sanitary Air Vent appeared first on Adamant Valves.

Air Headers are used to supply several users with instrument air. Besides multiple types of standard styles we also supply the Air Headers in accordance with specific customer demands.

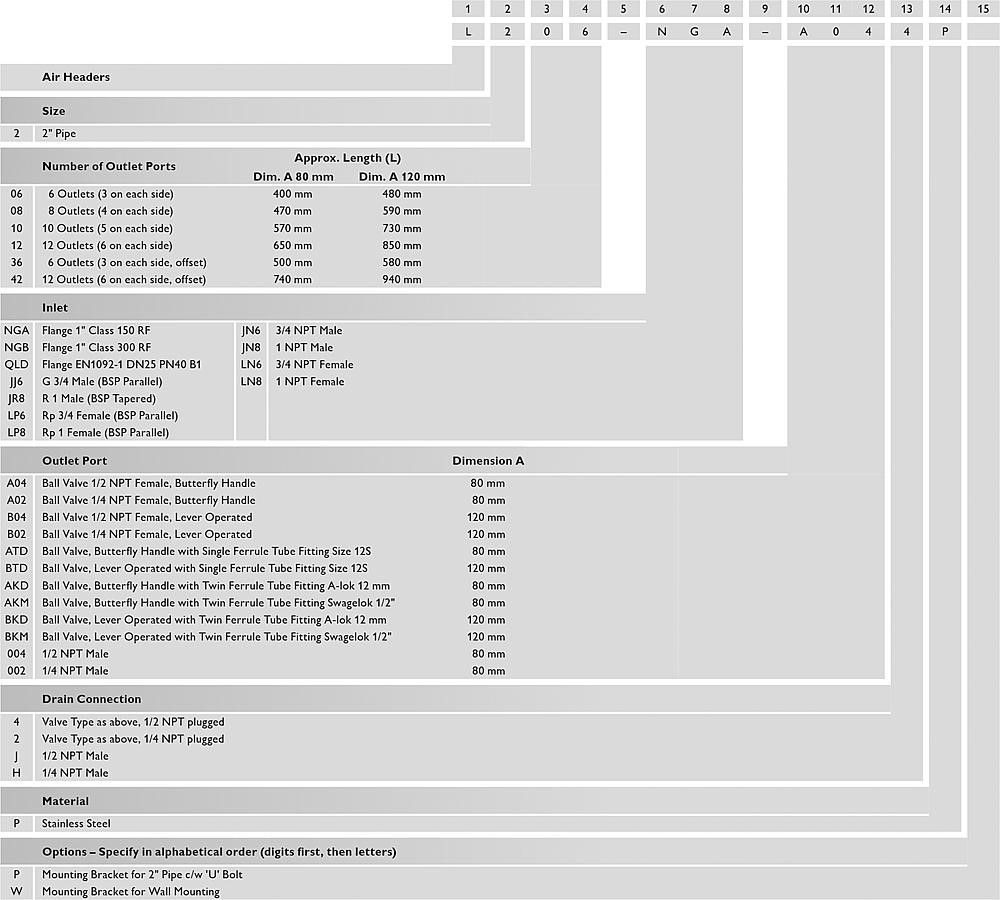

Air Headers Specifications

Selection can be made from a comprehensive range of pipe styles with a variety of connections and material options, optimizing installation and access opportunities.

*For more information, please contact us.

Air Headers Applications

Air Headers are used to supply several users with instrument air.

The post AV-2AH Air Headers appeared first on Adamant Valves.

Magnetic Mixer uses a patented levitating impeller and advanced design to mix down to the last drop and maximize product yield. Compact, energy-efficient and easy to maintain, it provides dry-running capabilities and efficient mixing at low speeds, which ensures gentle product treatment, as well as at high speeds for high-intensity mixing. This provides greater process flexibility to handle a wide range of fluid types and mixing duties. Its open design and low-speed rotation during cleaning contribute to no dead zones, effective residue removal and minimize contamination risks from wear particles. All this contributes to fast return on investment and maximum product yield in tanks ranging in size between 30 litres and 40,000 litres.

Magnetic Mixer Specifications

Technical data

Physical data

*For more information, please contact us.

Magnetic Mixer Applications

Magnetic Mixer offers effective mixing for multiple processes, such as those involving serums, vaccines, plasma fractions, bacteria and cell cultures, and APIs, in the biotechnology, pharmaceutical and other industries with demanding sterile or high-purity applications.

The post AV-13MM Magnetic Mixer appeared first on Adamant Valves.

B Series Electric Vibrators are electric motor driven eccentric weight rotary vibrators used to promote the flow of difficult bulk solids from bins and hoppers and silo blockages. The B Series Electric Vibrators can be provided with a maximum force output of 16,500 lbs. Units can be provided operating at speeds ranging from as low as 900 to as high as 3600 rpm. Units can be provided to operate with single phase power and units operating on 3-phase power are also available.

B Series Electric Vibrator Specifications

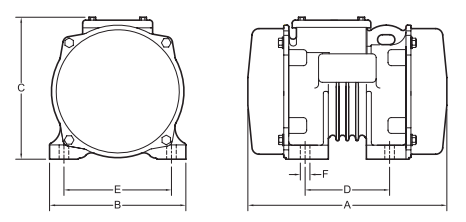

Dimensions (Inch)

Performance data

*For more information, please contact us.

B Series Electric Vibrator Applications

The post AV-13BEV B Series Electric Vibrator appeared first on Adamant Valves.

8800 Series Vortex Flow Meters offer world-class reliability with a gasket-free, non-clog meter body that eliminates potential leak points, resulting in maximum process availability and fewer unscheduled shutdowns. The unique design of 8800 Vortex Flow Meters features isolated sensors that eliminate the need to break process seals for flow and temperature sensor replacement.

8800 Series Vortex Flow Meters Specifications

• The unique isolated sensor design allows for replacement without breaking the process seal
• Increase plant availability and reduce potential leak points with a gasket-free meter body with no moving parts
• Eliminate downtime and maintenance costs associated with plugged impulse lines with a non-clog meter body design
• Achieve vibration immunity with a mass balanced sensor and Adaptive Digital Signal Processing with visual filtering
• A standard internal signal generator included in every meter simplifies electronics verification
• All meters arrive pre-configured and hydrostatically tested, making them ready and easy to install
• Simplify SIS compliance with available dual and quad Vortex flow meters
• Detect liquid to gas phase change using Smart Fluid Diagnostics

*For more information, please contact us.

8800 Series Vortex Flow Meters Applications

8800 Series Vortex Flow Meter is intended to be used as a flowmeter for liquid, gas, or steam applications.

The post AV-13VFM 8800 Series Vortex Flow Meters appeared first on Adamant Valves.

XMP series Pressure Transmitter has been specially designed for the process industry as well as the food and pharmaceutical industry (version stainless steel field housing) and measures vacuum, gauge and absolute pressure ranges of gases, steam, fluids up to 600 bar. Different process connections such as threads and flanges with an internal or flush welded diaphragm are available and can be combined with a cooling element for media temperatures up to 300 °C. The transmitter is as a standard equipped with HART®-communication; the customer can choose between an aluminum die-cast case or a stainless field housing.

XMP Pressure Transmitter Specifications

Housing designs 3 (dimensions in mm)

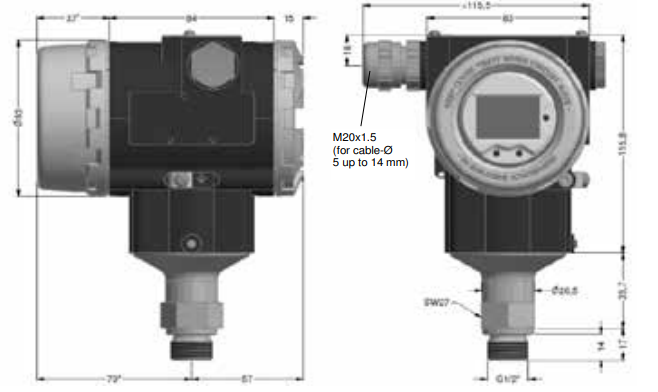

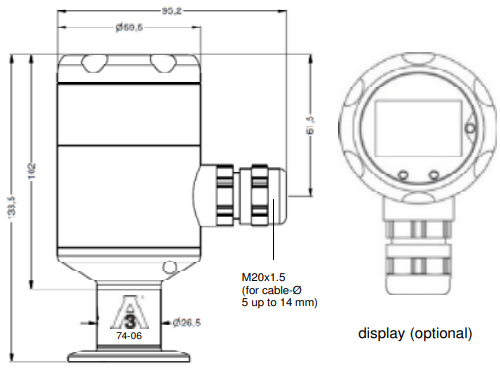

aluminum die cast case	stainless steel field housing
*without display and operating module marked dimensions decrease by 22 mm (with aluminum case)
for nominal pressure PN>400 bar increases the length of devices by 39 mm
3aluminum case is horizontally rotatable as standard

Standard Design

Accuracy according to IEC 60770:

0.1 % FSO

*For more information, please contact us.

XMP Pressure Transmitter Applications

XMP Pressure Transmitter has been specially designed for the process industry as well as the food and pharmaceutical industry (version stainless steel field housing) and measures vacuum, gauge, and absolute pressure ranges of gases, steam, fluids up to 600 bar.

The post AV-13XMP XMP Pressure Transmitter appeared first on Adamant Valves.

Screw-in RTD temperature probe for standard applications is preferentially used for measuring temperatures in liquids and gases. A decisive selection criterion is the reliable sealing feature of this installation type with vacuum and with overpressure. The application areas are, among others, in the air conditioning technology and refrigeration engineering as well as the HVAC and apparatus engineering sector.

The connection head is suitable for ambient temperatures up to +100 °C. In addition to the standard connection head form B, design BUZ is also available.

The measuring insert is normally fitted with a Pt100 temperature sensor according to DIN EN 60751, Class B in 2-wire circuit; versions with Pt500 or Pt1000 temperature sensors can also be supplied, as well as 4-wire circuit connections. A transmitter can be optionally integrated into the connection head.

PT100 RTD Temperature Probe Specifications

PT100 RTD Temperature Probe Applications

Used for measuring temperatures in liquids and gases. Typical application areas are in air conditioning technology, refrigeration engineering and HVAC.

The post AV-13PT PT100 RTD Temperature Probe appeared first on Adamant Valves.

Stackable Screen Gasket Support Spools are used to selectively filter sediment to various size mesh. It is used in conjunction with tri clamp screen gaskets available in different sizes and material types. Common applications range from fluid clarification to material separation.

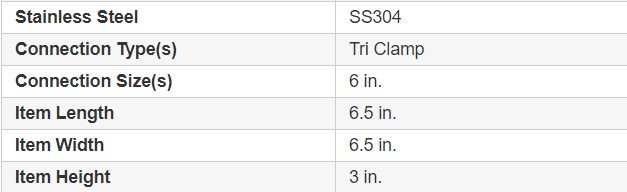

Sanitary Tri-clamp Screen Gasket Support Spool Specifications:

Sanitary Tri-clamp Screen Gasket Support Spool Applications:

Sanitary Tri-clamp Screen Gasket Support Spool provides the most comprehensive range of stainless-steel mesh and filter cloth which provide for particulate elimination to protect fill and finish sterile products, spray balls and spray nozzles.

The post SS-STS Sanitary Tri-clamp Screen Gasket Support Spool appeared first on Adamant Valves.
