Sanitary Titanium Pneumatic 180° Star Type Valve D11.3 is ideally suited for many applications within the heating ventilation and air conditioning, water treatment, and irrigation markets. It is made of Titanium TA1/TA2. This field-proven and industry-preferred valve are better than the Stainless-Steel Valve in preventing the corrosion of fasteners.

Sanitary Titanium Pneumatic 180° Star Type Valve D11.3 Specifications

Sanitary Titanium Pneumatic 180° Star Type Valve D11.3 Applications

Sanitary Titanium Pneumatic 180° Star Type Valve D11.3 is ideally suited for many applications within the heating ventilation and air conditioning, water treatment, and irrigation markets.

Related products:

Sanitary Titanium Manual Star Type Valve D10

Sanitary Titanium Pneumatic 90° Star Type Valve D11.4,

Sanitary Titanium Pneumatic 180° Star Type Valve D11.3,

Sanitary Titanium Pneumatic 90° Star Type Valve D12

The post AV-1SS Sanitary Titanium Pneumatic 180° Star Type Valve D11.3 appeared first on Adamant Valves.

Sanitary Titanium Manual Star Type Valve D10 is installed in the diameter direction of the pipe. The disc around the axis of rotation, rotation Angle is 0-90°. It only has to be rotated at 90°. The valve can be opened and closed quickly, is easy to operate, and has good fluid control characteristics. The pressure drop generated by the valve is very small, so it has good flow control characteristics. The elastic seal valve and sealing ring can be mounted on the valve body or attached to the disc periphery. It is made of Titanium TA1/TA2. This field-proven and industry-preferred valve are better than the Stainless Steel Valve in preventing the corrosion of fasteners.

Sanitary Titanium Manual Star Type Valve D10 Specifications

Sanitary Titanium Manual Star Type Valve D10 Applications

Sanitary Titanium Manual Star Type Valve D10 can be applied in various fluid control systems, such as food and beverage, wine, pharmaceutical, and other industries.

Related products:

Sanitary Titanium Pneumatic 90° Star Type Valve D11.4,

Sanitary Titanium Pneumatic 180° Star Type Valve D11.3,

Sanitary Titanium Pneumatic 90° Star Type Valve D12

The post AV-1SB Sanitary Titanium Manual Star Type Valve D10 appeared first on Adamant Valves.

Sanitary Titanium Pneumatic 90° Star Type Valve D11.4 is ideally suited for many applications within the heating ventilation and air conditioning, water treatment, and irrigation markets. It is made of Titanium TA1/TA2. This field-proven and industry-preferred valve are better than the Stainless Steel Valve in preventing the corrosion of fasteners.

Sanitary Titanium Pneumatic 90° Star Type Valve D11.4 Specifications

Sanitary Titanium Pneumatic 90° Star Type Valve D11.4 Applications

Sanitary Titanium Pneumatic 90° Star Type Valve D11.4 is ideally suited for many applications within the heating ventilation and air conditioning, water treatment, and irrigation markets.

Related products:

Sanitary Titanium Manual Star Type Valve D10

Sanitary Titanium Pneumatic 90° Star Type Valve D11.4,

Sanitary Titanium Pneumatic 180° Star Type Valve D11.3,

Sanitary Titanium Pneumatic 90° Star Type Valve D12

The post AV-1PD Sanitary Titanium Pneumatic 90° Star Type Valve D11.4 appeared first on Adamant Valves.

The ultra-thin ball valve has significant advantages such as short structure length, lightweight, convenient installation, and material saving. The heat preservation effect of the ball valve is good. In addition, the valve seat adopts an elastic sealing structure, which is reliable in sealing and easy to open and close.

Ultra-Thin Ball Valve Specifications:

Options:

Handles: 4-position pull handle; multi-position handle with plastic cover or in pure stainless steel.

Actuators to reach automatic operation: pneumatic stainless-steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), and electric actuator.

NC operated: normally closed (fail closed)—air to open, spring to close.

NO operated: normally open (fail open)—air to close, spring to open.

AA operated: double-acting—air to open, air to close.

Valve intelligent control: position sensor, C-top controller, C-top controller (AS-I).

Ultra-Thin Ball Valve Applications:

Our high-performance ultra-thin ball valve can be used in a general medium such as water, steam, oil, nitric acid, acetic acid, oxidizing medium, urea and other media.

The post AV-1HMU High-Performance Manual Ultra-Thin Ball Valve with Flange Connection appeared first on Adamant Valves.

The three-piece flange ball valve is similar to the gate valve. This valve is mainly used in the pipeline to cut off, distribute and change the flow direction of the medium. The manual 3-piece ball valve is a new type of valve that has been widely used in recent years.

Manual 3-Piece Ball Valve Advantages:

• The fluid resistance is small, and the resistance coefficient is the same as the pipe of the same length.
• Convenient operation, quick opening, and closing, easy for remote control
• Simple structure, small size, lightweight

Manual 3-Piece Ball Valve Specifications:

Options:

Handles: 4-position pull handle; multi-position handle with plastic cover or in pure stainless steel.

Actuators to reach automatic operation: pneumatic stainless-steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), and electric actuator.

NC operated: normally closed (fail closed)—air to open, spring to close

NO operated: normally open (fail open)—air to close, spring to open

AA operated: double-acting—air to open, air to close

Valve intelligent control: position sensor, C-top controller, C-top controller (AS-I)

Manual 3-Piece Ball Valve Applications:

Our high-performance manual 3-piece ball valve can be used in a general medium such as potable water, wastewater and neutral, oxidation and corrosive liquids and gases.

The post AV-1HMB High-Performance Manual 3-Piece Ball Valve with Flange Connection appeared first on Adamant Valves.

The insulation jacket is welded between the two flanges of the valve, and two connection ports of the insulation jacket are provided on the side and bottom of the valve. The DC insulation globe valve is especially suitable for pipelines in the chemical and fertilizer industries. The steam in the jacket can prevent the medium from crystallizing. It is used in the pipelines of the chemical and fertilizer industries. The steam in the jacket can prevent the medium from crystallizing.

High-Performance Y Type Globe Valve Specifications:

High-Performance Y Type Globe Valve Options:

End connection can be butt-welded or sanitary tri-clamp, and others are available upon request.

High-Performance Y Type Globe Valve Applications:

Insulation globe valves are mainly used in petroleum, chemical, metallurgy, pharmaceutical, and other systems to transport high-viscosity media that will solidify at room temperature.

The post AV-21YG High Performance Y Type Globe Valve with Insulation Jacket, Worm Gear Operator, Flanged appeared first on Adamant Valves.

Swing check valve is a device for preventing the backflow of media on the pipeline. It is an ultra-thin check valve. This valve has the advantages of simple structure, beautiful appearance, lightweight and easy installation. This wafer swing check valve can be put both vertically and horizontally. This device’s mechanical strength is powered by its mono-bloc disc and stem and combined with body gasket. It is short in length and contains a hoisting eye. This apparatus also has an ISO PN10.16 in between the flanges.

 High-Performance Swing Check Valve Specifications:

High-Performance Swing Check Valve Applications:

Swing check valve is mainly suitable for the water supply system, petroleum, chemical industry, metallurgy, and other industrial sectors, and is most suitable for places with limited installation space.

The post AV-3S High Performance Swing Check Valve appeared first on Adamant Valves.

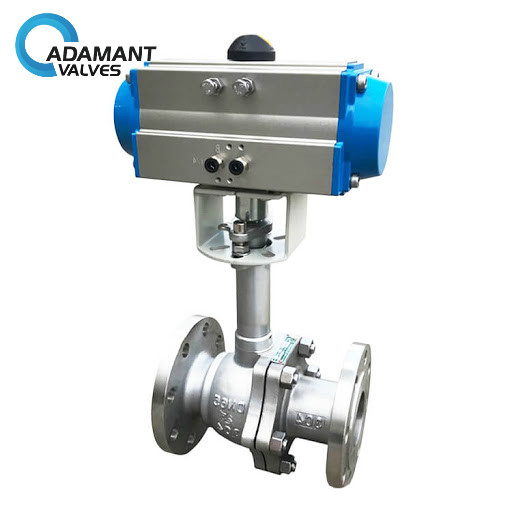

The medium temperature of the cryogenic ball valve is very low, which is used for the control system of cryogenic medium. The valve produced by a special low-temperature process to ensure the low-temperature performance of the material. When it operates in low-temperature conditions, it will not cause leakage due to deformation caused by temperature changes. The valve cover of the cryogenic ball valve uses a long neck structure, which can protect the function of the stuffing box, keep the stuffing box away from the low temperature, and ensure the sealing effect of the packing.

High-Performance Cryogenic Ball Valves Specifications:

Options:

End connection can be butt-welded, sanitary tri-clamp, threaded, or others upon request.

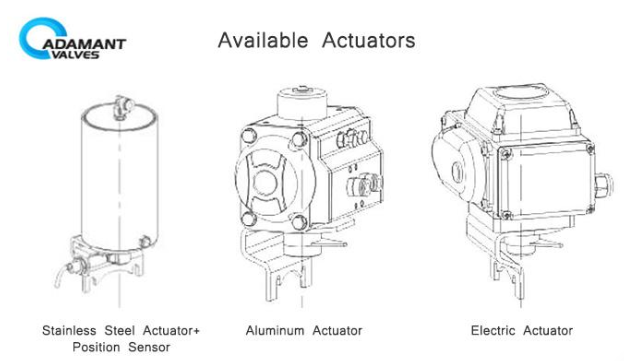

Actuators to reach automatic operation: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), and electric actuator.

• NC operated: normally closed (fail closed)—air to open, spring to close
• NO operated: normally open (fail open)—air to close, spring to open
• AA operated: double-acting—air to open, air to close

High-Performance Cryogenic Ball Valves Applications:

The cryogenic ball valve is used in chemical equipment such as ethylene and liquefied natural gas, the liquid cryogenic medium output is generally ethylene, liquid oxygen, liquid hydrogen, etc.

The post AV-2PCB High Performance Cryogenic Ball Valves, 304 Body, Pneumatic Operator appeared first on Adamant Valves.

Wafer type butterfly valve is simple in structure, small in size and light in weight, and consists of only a few parts. Moreover, it can be opened and closed quickly by rotating 90 °, and the operation is simple. At the same time, the valve has good fluid control characteristics. When the butterfly valve is in the fully open position, the thick butterfly plate resists medium flows through the valve, and it generates a small pressure drop.

Specifications of High-Performance Wafer Butterfly Valves

Options of High-Performance Wafer Butterfly Valves

• Valve body and disc material can be AISI 304 or AISI 316L, 304L and 316 materials are available upon request.
• The seat and gasket can be EPDM, VMQ (Silicone), or Viton (FPM), all complying with FDA 21CFR177.2600.
• End connection can be butt-welded, sanitary tri-clamp, threaded, flanged, I-line, or others upon request.
• Handles turbine handle in stainless steel; multi-position handles with plastic cover or in pure stainless steel.

Actuators to reach automatic operation: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), and electric actuator.

• NC operated: normally closed (fail closed)—air to open, spring to close
• NO operated: normally open (fail open)—air to close, spring to open
• AA operated: double acting—air to open, air to close

• Valve intelligent control: position sensor, C-top controller, C-top controller (AS-I)
• Standards: DIN, SMS, ISO / IDF, BS / RJT, and ASME / BPE

Applications of High-Performance Wafer Butterfly Valves

The wafer butterfly valve is widely used in chemical and water treatment. It is also a very economical fluid solution for processes with low sanitation levels and low frequency of opening and closing. PFA-packaged valve plates can be used in highly corrosion media in the chemical or semiconductor industries. Wafer butterfly valves with stainless steel discs can be used in the food or pharmaceutical industry.

The post AV-1HWBL High Performance Wafer Butterfly Valves, 304 Body, Lever Operator appeared first on Adamant Valves.

Wafer type butterfly valve is simple in structure, small in size and light in weight, and consists of only a few parts. Moreover, it can be opened and closed quickly by rotating 90 °, and the operation is simple. At the same time, the valve has good fluid control characteristics. When the butterfly valve is in the fully open position, the thick butterfly plate resists medium flows through the valve, and it generates small pressure drop.

Specifications of High-Performance Wafer Butterfly Valve

Options of High-Performance Wafer Butterfly Valve

• Valve body and disc material can be AISI 304 or AISI 316L, 304L and 316 materials are available upon request.
• The seat and gasket can be EPDM, VMQ (Silicone), or Viton (FPM), all complying with FDA 21CFR177.2600.
• End connection can be butt-welded, sanitary tri-clamp, threaded, flanged, I-line, or others upon request.
• Handles turbine handle in stainless steel; multi-position handles with plastic cover or in pure stainless steel.

Actuators to reach automatic operation: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), and electric actuator.

• NC operated: normally closed (fail closed)—air to open, spring to close
• NO operated: normally open (fail open)—air to close, spring to open
• AA operated: double acting—air to open, air to close

• Valve intelligent control: position sensor, C-top controller, C-top controller (AS-I)
• Standards: DIN, SMS, ISO / IDF, BS / RJT, and ASME / BPE

Applications of High-Performance Wafer Butterfly Valve

The wafer butterfly valve is widely used in chemical and water treatment. It is also a very economical fluid solution for processes with low sanitation levels and low frequency of opening and closing. PFA-packaged valve plates can be used in highly corrosion media in the chemical or semiconductor industries. Wafer butterfly valves with stainless steel discs can be used in the food or pharmaceutical industry.

The post AV-1HWE High Performance Wafer Butterfly Valve, 304 Body, Electric Operator appeared first on Adamant Valves.
