AV-25AO Air On/Off Valves

maria — Thu, 12 Aug 2021 07:51:45 +0000

Air On/Off Valves Description

Turn airflow on and off with these valves. They have two balls to independently shut off airflow to one of two outlets from a single source. When closed, they vent air pressure to the atmosphere so you can disconnect air tools safely.

Air On/Off Valves Specifications

Inlet (Ports)	Outlet (Ports)	Inlet Pipe Size	Outlet Pipe Size	Flow Coefficient (Cv)	Temp. Range, °F	Ball Material
NPT Female Inlet × NPT Female Outlet
1	2	1	3/4	43	-20 to 400	Bronze
1	2	1 1/4	3/4	43	-20 to 400	Bronze
NPT Female Inlet × NPT Male Outlet
1	2	1	3/4	30	-40 to 365	Chrome-Plated Brass

The post AV-25AO Air On/Off Valves appeared first on Adamant Valves.

AV-25PC Diverting Valves with Push-to-Connect Fittings

maria — Thu, 12 Aug 2021 07:33:50 +0000

Diverting Valves with Push-to-Connect Fittings Description

Insert tubing into the fittings on these valves—no heat, solder, or flux is required. They divert flow between ports in tubing lines. Turn the handle to direct flow from the bottom-port inlet to either side-port outlet or shut off flow completely. These valves are standard ports, so they slightly restrict flow.

Nylon valves are more impact-resistant than PVC or polypropylene valves.

Polypropylene valves are more corrosion-resistant than PVC or nylon valves.

Diverting Valves with Push-to-Connect Fittings Specifications

For Tube OD	Flow Pattern	Flow Coefficient (Cv)	Max. Pressure	Temp. Range, °F	End-to-End Lg.
Black Nylon Plastic Body Push to Connect × Push to Connect × Push to Connect
1/4”	L-Pattern	0.6	125 psi @ 140 ℉	35 to 140	2 1/2”
5/16”		Not Rated	125 psi @ 140 ℉	35 to 140	2 5/8”
3/8”		1.6	125 psi @ 140 ℉	35 to 140	2 1/2”
Black Polypropylene Plastic Body Push to Connect × Push to Connect × Push to Connect
1/4”	L-Pattern	0.6	125 psi @ 140 ℉	35 to 140	2 1/2”
5/16”		Not Rated	125 psi @ 140 ℉	35 to 140	2 5/8”
3/8”		1.6	125 psi @ 140 ℉	35 to 140	2 1/2”
Dark Gray PVC Plastic Body Push to Connect × Push to Connect × Push to Connect
1/4”	L-Pattern	0.6	125 psi @ 140 ℉	35 to 140	2 1/2”
5/16”		Not Rated	125 psi @ 140 ℉	35 to 140	2 5/8”
3/8”		1.6	125 psi @ 140 ℉	35 to 140	2 1/2”

The post AV-25PC Diverting Valves with Push-to-Connect Fittings appeared first on Adamant Valves.

AV-25BF Diverting Valves with Barbed Fittings

maria — Thu, 12 Aug 2021 07:27:42 +0000

Diverting Valves with Barbed Fittings Description

Barbs grip onto the tubing, providing a secure hold. These valves divert flow between ports in tubing lines. Turn the handle to direct flow from the bottom-port inlet to either side-port outlet or shut off flow completely. Valves are standard port, so they slightly restrict flow.

Diverting Valves with Barbed Fittings Specifications

For Tube ID	Flow Pattern	Flow Coefficient (Cv)	Max. Pressure	Temp. Range, °F	End-to-End Lg.
Dark Gray PVC Plastic Body-Barbed × Barbed × Barbed
1/4”	L-Pattern	0.5	125 psi @ 140 ℉	35 to 140	3 3/16”
3/8”	L-Pattern	1.4	125 psi @ 140 ℉	35 to 140	3 3/16”
1/2”	L-Pattern	1.3	125 psi @ 140 ℉	35 to 140	3 3/16”

The post AV-25BF Diverting Valves with Barbed Fittings appeared first on Adamant Valves.

AV-25FD Flanged Diverting Valves

maria — Thu, 12 Aug 2021 07:17:55 +0000

Flanged Diverting Valves Description

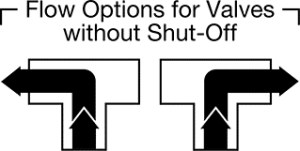

Bolt these valves to flanges to divert flow between ports in flanged pipelines. Any port can be used as an inlet or an outlet. Turn the handle to direct flow from the inlet port to either outlet port. Valves cannot shut off flow.

316 stainless steel valves are more corrosion-resistant than carbon steel valves.

Full-port valves do not restrict flow.

Standard-port valves slightly restrict flow.

Flanged Diverting Valves Specifications

Pipe Size	Flow Pattern	Port Type	Pressure Class	Flange OD	Flow Coefficient (Cv)	Max. Pressure	Temp. Range, ℉	End-to-End Lg.
Steel Body-Flanged x Flanged x Flanged
2	L-Pattern	Full	150	6”	90	150 psi @ 400° F	-20 to 400	8 11/16”
3	L-Pattern	Full	150	7 1/2”	211	150 psi @ 400° F	-20 to 400	11 1/4”
4	L-Pattern	Full	150	9”	386	150 psi @ 400° F	-20 to 400	13 11/16”
316 Stainless Steel Body-Flanged x Flanged x Flanged
2	L-Pattern	Standard	150	6”	133.4	275 psi @ 100° F	0 to 340	10 1/2”
3	L-Pattern	Standard	150	7 1/2”	313.2	275 psi @ 100° F	0 to 340	13 3/8”
4	L-Pattern	Standard	150	9”	504.6	275 psi @ 100° F	0 to 340	15 1/4”

Flanged Diverting Valves Application

Suitable for heating and conditioning (HVAC), district heating, distribution and treatment of water, industrial applications, agricultural applications, compressed air processing, oils, and hydrocarbons.

The post AV-25FD Flanged Diverting Valves appeared first on Adamant Valves.

AV-25MT Multiport Threaded Diverting Valves

maria — Thu, 12 Aug 2021 07:03:05 +0000

Multiport Threaded Diverting Valves Description

Divert the flow of compressed air and other media to multiple pieces of equipment. Turn the handle to direct flow to multiple outlet ports. Valves cannot shut off flow.

Valves with Double L-pattern flow have two separate flow paths.

Valves with T-pattern flow direct flow from the inlet port to two of the three outlet ports at reduced capacity.

Multiport Threaded Diverting Valves are engineered to switch critical processes and difficult media.

Multiport Threaded Diverting Valves Specifications

Pipe Size	Max. Pressure	Temp. Range, ℉	End-to-End Lg.
NPT Female × NPT Female × NPT Female × NPT Female
1/4	250 psi @ 70℉	-60 to 400	1 7/8”

The post AV-25MT Multiport Threaded Diverting Valves appeared first on Adamant Valves.

AV-25DF Diverting Valves with Fire-Fighting Hose Fittings

maria — Thu, 12 Aug 2021 05:59:54 +0000

Diverting Valves with Fire-Fighting Hose Fittings Description

Control the flow of water in two directions from a single source—these diverting valves have two balls and handles for the independent operation of each outlet. They can direct flow to one side outlet at full capacity while shutting off flow to the second side outlet, direct flow to both side outlets at reduced capacity, or shut off flow to both side outlets. Valves have a brass body for good corrosion resistance. They are for use with a fire-fighting hose.

Diverting Valves with Fire-Fighting Hose Fittings Specifications

Inlet Pipe Size	Outlet Pipe Sizes	Flow Pattern	Max. Pressure	Temp. Range, ℉	End-to-End Lg.
NH/NST Female × NH/NST Male × NH/NST Male
2 1/2	1 1/2 x 1 1/2	Y-Pattern	300 psi @ 150℉	-20 to 150	5 5/8”
NPSH Female × NPSH Male × NPSH Male
2 1/2	1 1/2 x 1 1/2	Y-Pattern	300 psi @ 150℉	-20 to 150	5 5/8”

The post AV-25DF Diverting Valves with Fire-Fighting Hose Fittings appeared first on Adamant Valves.

AV-25DS Dual Shut-Off Threaded Diverting Valves

maria — Thu, 12 Aug 2021 05:45:42 +0000

Dual Shut-Off Threaded Diverting Valves Description

Control flow in two directions from a single source—these valves have two handles for the independent operation of each outlet. They can direct flow from the center-port inlet to one side-port outlet at full capacity, direct flow to both side-port outlets simultaneously at reduced capacity, or shut off flow to both outlet ports completely. Valves are standard ports, so they slightly restrict flow.

Dual Shut-Off Threaded Diverting Valves Specifications

Inlet Pipe Size	Outlet Pipe Sizes	Flow Pattern	Max. Pressure	Temp. Range, ℉	End-to-End Lg.
NPT Female x NPT Female x NPT Female
1	3/4 x 3/4	Y-Pattern	550 psi @ 150℉	–	3 7/16”
1 1/4	3/4 x 3/4	Y-Pattern	550 psi @ 150℉	–	3 7/16”
NPT Female x NPT Male x NPT Male
1	3/4 x 3/4	Y-Pattern	600 psi @ 150℉	-40 to 365℃	3 1/4”
